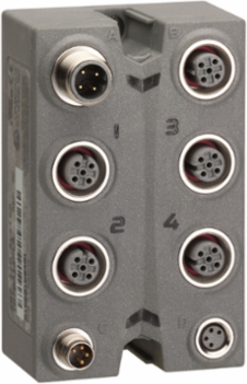

Schneider Electric TM7BAI4PLA Analog I/O Expansion Block, IP67, 4 Thermocouple Inputs, M12 Connector
- MPN: TM7BAI4PLA
- PPN: SCH-TM7BAI4PLA
CAD
$678.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Designed for robust automation and control applications, the TM7BAI4PLA Analog I/O Expansion Block from Schneider Electric features IP67-rated protection, ensuring reliable performance in various environments. With four thermocouple inputs and an M12 connector, this expansion block seamlessly integrates into PLC or HMI systems, providing precise data acquisition capabilities. Its resilient design caters to the demanding requirements of industrial settings while facilitating efficient monitoring and control of temperature-sensitive processes.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 24 V DC
- Analogue Input Type
- Thermocouple J, K, S, voltage
- Analogue Input Resolution
- 16 bits
- Input/Output Number
- 4
- Net Weight
- 0.2 kg (0.44 lb)
- Bus Type
- TM7 bus
- Enclosure Material
- Plastic
- Standards
- IEC 61131-2
- Marking
- CE
- Ambient Air Temperature for Storage
- -25 to 85 °C (-13 to 185 °F)
- Pollution Degree
- 2 IEC 60664
- Storage Altitude
- 0 to 3000 m (0 to 9843 ft)
- Shock Resistance
- 30 gn 11 ms IEC 60721-3-5 Class 5M3
- Resistance to Electromagnetic Fields
- 10 V/m 0.08-2 Hz, 1 V/m 2-2.7 Hz EN/IEC 61000-4-3
- Surge Withstand for DC 24 V Circuit
- 1 kV common mode, 0.5 kV differential mode EN/IEC 61000-4-5
- Disturbance Radiated/Conducted
- CISPR 11
- Product Type
- Analog I/O expansion block
- Local Signalling
- 2 LEDs bus diagnostic, 2 LEDs sensor/actuator power supply status
- Reach Compliance
- REACH free of SVHC, EU RoHS proactive compliance, Toxic heavy metal free, Mercury free, China RoHS, RoHS exemption
- Warranty
- 18 months
Analogue Input Number4
Analogue Input Range0...65536 µV
Sensor Power Supply24 V overload, short-circuit and reverse polarity protection
Dimensions85 mm x 53 mm x 42 mm (3.35 in x 2.08 in x 1.65 in)
Fixing ModeBy 2 screws
Electrical Connection1 male connector M12 - B coding - 4 ways bus IN, 1 female connector M12 - B coding - 4 ways bus OUT, 4 female connectors M12 - A coding - 5 ways sensor, 1 male connector M8 - 4 ways power IN, 1 female connector M8 - 4 ways power OUT
IP Degree of ProtectionIP67 IEC 61131-2
Product CertificationscURus, GOST-R, ATEX II 3g EEx nA II T5, C-Tick
Ambient Air Temperature for Operation-10 to 60 °C (14 to 140 °F)
Relative Humidity5 to 95 % without condensation or dripping water
Operating Altitude0 to 2000 m (0 to 6562 ft)
Vibration Resistance7.5 mm amplitude 2-8 Hz, 2 gn 8-200 Hz, 4 gn 200-500 Hz IEC 60721-3-5 Class 5M3
Resistance to Electrostatic Discharge6 kV contact, 8 kV air EN/IEC 61000-4-2
Resistance to Fast Transients2 kV power supply, 1 kV input/output, 1 kV shielded cable EN/IEC 61000-4-4
Electromagnetic CompatibilityEN/IEC 61000-4-6
Range CompatibilityModicon M258, Modicon LMC058
Operating PositionAny position
PVC FreeYes
Country of OriginAustria
