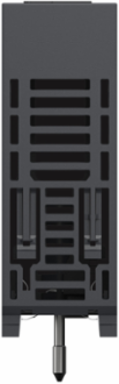

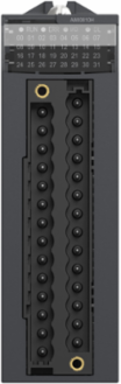

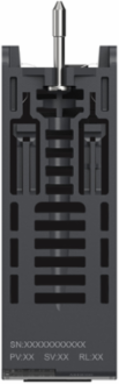

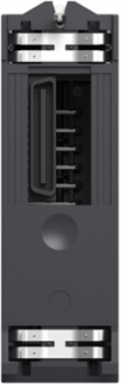

Schneider Electric BMXAMI0810H Analog Isolated Input Module 8 Channels, 0-20mA/10V, IP20
- MPN: BMXAMI0810H
- PPN: SCH-BMXAMI0810H
CAD
$2680.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a power consumption of 1.54W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.175kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Complementary Attributes
- Maximum Conversion Value
- +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA, 0...30 mA +/- 5 V
Minimum Crosstalk Attenuation80 dB
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Digital Value Format
- - 32768 to + 32767 in maximum user scale, +/- 10000 by default, - 32768 to + 32767 in maximum user scale, +/- 10000 by default
- Isolation Voltage
- 300 V DC between channels1400 V DC between channels and ground, 1400 V DC between channels and bus
- Measurement Resolution
- 0.36 mV +/- 10 V, 0.36 mV 0...10 V, 0.36 mV 0...5 V, 0.36 mV 1...5 V, 0.36 mV +/- 5 V1.4 µA +/- 20 mA, 1.4 µA 0...20 mA, 1.4 µA 4...20 mA
- Status Led
- 1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
- Certificate Agency
- CE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.2963288485
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 21 kg CO2 eq., 21.3375393939
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Common Mode Rejection
- 80 dB
- Electrical Connection
- 28 ways 1 connector
- Mtbf Reliability
- 900000 H
- Precision Of Internal Conversion Resistor
- 0.1 % - 15 ppm/°C
- Product Or Component Type
- analog input module
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 93 kg CO2 eq.
- Vibration Resistance
- 3 gn
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 108.7992
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Analog/Digital Conversion
- 16 bits
- Package Weight(Lbs)
- 168.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2, hazardous location
Measurement Error<= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale 4...20 mA - 25...70 °C, <= 0.55 % of full scale 4...20 mA - 25...70 °C, <= 0.55 % of full scale 4...20 mA - 25...70 °C0.15 % of full scale +/- 20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C0.075 % of full scale +/- 10 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C
Power Consumption In W1.06 W 24 V DC typical1.50 W 24 V DC maximum0.32 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Temperature Drift30 ppm/°C +/- 10 V, 30 ppm/°C +/- 5 V, 30 ppm/°C 0...10 V, 30 ppm/°C 0...5 V, 30 ppm/°C 1...5 V50 ppm/°C +/- 20 mA, 50 ppm/°C 0...20 mA, 50 ppm/°C 4...20 mA
Carbon Footprint Of The Distribution Phase [A4]0.0218375273, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0444685576, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]71 kg CO2 eq., 70.9358547486
Local Publishable Date2026-02-11
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current Consumption150 mA 3.3 V DC54 mA 24 V DC
Fast Read Cycle Time1 ms + 1 ms x number of channels used
Nominal Read Cycle Time9 ms for 8 channels
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor severe environments
Range Of ProductModicon X80
Shock Resistance30 gn
Sustainable PackagingYes
Type Of Filterfirst order digital filtering
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %3
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311046EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint92.6360290759
Environmental DisclosureENVPEP2311046EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001420
ETIM 9EC001420
Surge Protection And Filtering Attributes
- Type Of Filter
- first order digital filtering
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- current +/- 20 mA, current 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V
- Permitted Overload On Inputs
- +/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA, +/- 30 mA +/- 20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA
- Analogue Input Resolution
- 15 bits + sign
- Input Level
- high level
Input Output Isolationisolated, isolated
Analogue Input Number8
Input Impedance10 MOhm in voltage mode250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
