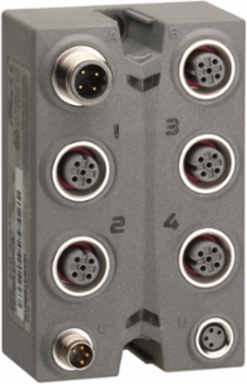

Schneider Electric TM7BAI4VLA Analog I/O Expansion Block, 4 AI, +/-10 V, IP67, M12 Connector
- MPN: TM7BAI4VLA
- PPN: SCH-TM7BAI4VLA
CAD
$678.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric TM7BAI4VLA Analog I/O Expansion Block is engineered to enhance your automation and control systems with its capacity for four analog inputs, accommodating signals from ±10 V sources. Designed for robustness, this device features an IP67 rating, ensuring it remains protective against dust and moisture, making it suitable for various industrial environments. Its M12 connector provides a secure and reliable connection, facilitating easy integration into complex PLC and HMI setups, which is vital for seamless data acquisition in automated processes.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 24 V DC
- Analogue Input Number
- 4
- Sensor Power Supply
- 24 V, 500 mA, overload/short-circuit/reverse polarity protected
- Weight
- 0.2 kg (0.44 lb)
- IP Rating
- IP67 IEC 61131-2
- Storage Temperature
- -25 to 85 °C
- Pollution Degree
- 2 IEC 60664
- Storage Altitude
- 0 to 3000 m
- Vibration Resistance
- 7.5 mm 2-8 Hz, 2 gn 8-200 Hz, 4 gn 200-500 Hz IEC 60721-3-5 Class 5M3
- Resistance To Electrostatic Discharge
- 6 kV contact, 8 kV air IEC 61000-4-2
- Surge Withstand Voltage
- 1 kV common mode, 0.5 kV differential mode IEC 61000-4-5
- Radiated/Conducted Disturbance
- CISPR 11
- Standards
- IEC 61131-2
- Toxic Heavy Metal Free
- Yes
- RoHS Exemption
- Yes
- Fixing Mode
- By 2 screws
- Product Type
- Analog I/O expansion block
- Operating Position
- Any position
- Environmental Disclosure
- ENVPEP1409005EN
- Reach Regulation
- Contains SVHC above threshold
- China RoHS
- X
Input Voltage Range±10 V
Input Resolution11 bits + sign
Electrical Connection1 male M12 B coding 4-way bus IN, 1 female M12 B coding 4-way bus OUT, 4 female M12 A coding 5-way sensor, 1 male M8 4-way power IN, 1 female M8 4-way power OUT
Enclosure MaterialPlastic
Operating Temperature-10 to 60 °C
Relative Humidity5 to 95% without condensation
Operating Altitude0 to 2000 m
Bus TypeTM7 bus
Shock Resistance30 gn 11 ms IEC 60721-3-5 Class 5M3
Resistance To Fast Transients2 kV power supply, 1 kV input/output, 1 kV shielded cable IEC 61000-4-4
Electromagnetic CompatibilityEN/IEC 61000-4-6
Product CertificationscURus, GOST-R, ATEX II 3g EEx nA II T5, C-Tick
MarkingCE
Mercury FreeYes
PVC FreeYes
Local SignallingBus diagnostic 2 LEDs, sensor/actuator power supply status 2 LEDs
Range CompatibilityModicon M258, Modicon LMC058
Circularity ProfileENVEOLI1409005EN
Weee ComplianceEU disposal compliant
Sustainable Offer StatusGreen Premium product
Warranty18 months
