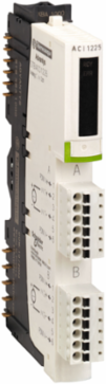

Schneider Electric STBACI1225K Basic Analog Input Kit, 2 Inputs, 10-Bit Resolution, 4-20 mA

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (current 4mA to 20mA) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. The response time is 5ms. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1100, 6-terminal screw type connector, STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector and STBACI1225 module. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
