Schneider Electric

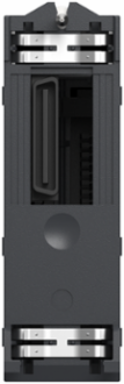

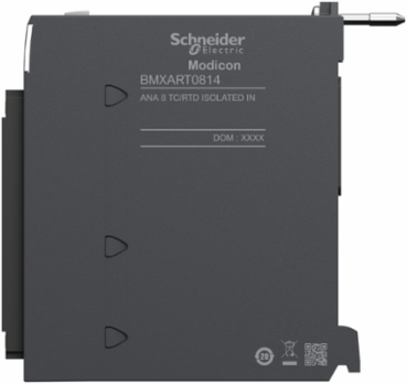

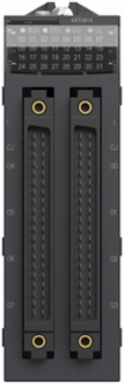

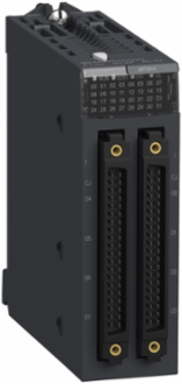

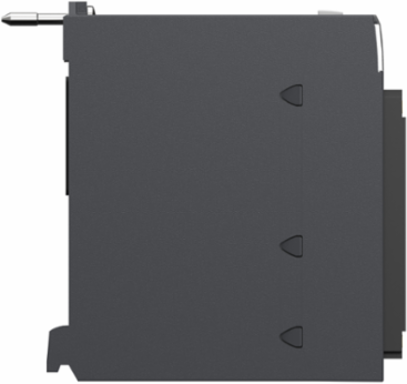

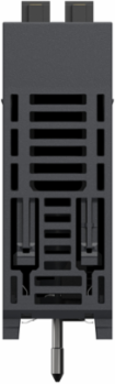

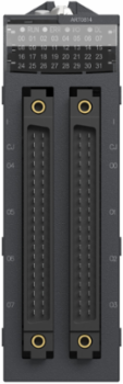

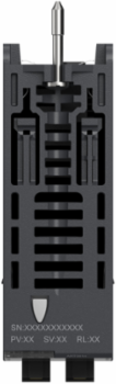

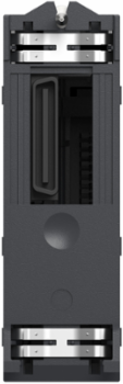

Schneider Electric BMXART0814 Analog Isolated Input Module, 8 Channels, 15-Bit Resolution

  • MPN: BMXART0814
  • PPN: SCH-BMXART0814
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2779.42

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France

    Complementary Attributes

    Maximum Conversion Value
    +/- 100 % 400 Ohm, +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV, +/- 102.5 % +/- 80 mV, +/- 100 % 400 Ohm, +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV
    Maximum Wiring Resistance20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Pt 100, 200 Ohm 3 wires Ni 1000, 200 Ohm 3 wires Pt 100050 Ohm 4 wires Ni 100, 50 Ohm 4 wires Pt 100500 Ohm 4 wires Pt 100020 Ohm 2 wires Cu 10, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Pt 100, 20 Ohm 3 wires Cu 10200 Ohm 2 wires Ni 1000, 200 Ohm 2 wires Pt 100050 Ohm 4 wires Cu 10, 500 Ohm 4 wires Ni 1000

    Important Information Attributes

    Persona Type Ids
    EU, OM8, SI
    Detection Type
    open circuit Cu 10, open circuit Ni 100, open circuit Ni 1000, open circuit Pt 100, open circuit Pt 1000, open circuit thermocouple B, open circuit thermocouple E, open circuit thermocouple J, open circuit thermocouple K, open circuit thermocouple L, open circuit thermocouple N, open circuit thermocouple R, open circuit thermocouple S, open circuit thermocouple T, open circuit thermocouple U
    Measurement Error
    +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 25 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 80 mV 25 °C0.12 % of full scale 4000 Ohm 25 °C, <= 0.2 % of full scale +/- 40 mV 0...60 °C, <= 0.2 % of full scale +/- 40 mV 0...60 °C, <= 0.2 % of full scale +/- 40 mV 0...60 °C, <= 0.3 % of full scale 400 Ohm 0...60 °C, <= 0.3 % of full scale 400 Ohm 0...60 °C, <= 0.3 % of full scale 400 Ohm 0...60 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, 0.05 % of full scale +/- 1.28 V 25 °C, 0.05 % of full scale +/- 40 mV 25 °C0.12 % of full scale 400 Ohm 25 °C, <= 0.3 % of full scale 400 Ohm 0...60 °C, 1.3 °C Ni 1000 0...60 °C
    Nominal Read Cycle Time
    400 ms with temperature probe, 200 ms with thermocouple
    Temperature Drift
    25 ppm/°C 400 Ohm, 25 ppm/°C 4000 Ohm, 25 ppm/°C Ni 1000, 25 ppm/°C thermocouple B, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple U30 ppm/°C +/- 1.28 V, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 80 mV, 30 ppm/°C Cu 10, 30 ppm/°C Ni 100, 30 ppm/°C Pt 100, 30 ppm/°C Pt 1000
    Carbon Footprint Of The Distribution Phase [A4]
    0.0270680727, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0551197091, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    99 kg CO2 eq., 99.0017798883
    Local Publishable Date
    2026-01-23
    Stocking Flag
    N
    Device Type
    PLC System - PLC Component
    Traceability
    Yes
    Average Life Duration
    20 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Common Mode Rejection
    120 dB 50/60 Hz
    Differential Mode Rejection
    60 dB 50/60 Hz
    Mtbf Reliability
    900000 H
    Product Or Component Type
    analog input module
    Range Of Product
    Modicon X80
    Returnability
    Yes
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    126 kg CO2 eq.
    Vibration Resistance
    3 gn
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %
    3
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Water Use (M3 Eq) Manufacturing [A1-a3]
    73333.2
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Environmental Characteristic3C3 IEC 60721-3-3, 3C4 IEC 60721-3-3
    Measurement Resolution0.1 °C Cu 10, 0.1 °C Ni 100, 0.1 °C Ni 1000, 0.1 °C Pt 100, 0.1 °C Pt 1000, 0.1 °C thermocouple B, 0.1 °C thermocouple E, 0.1 °C thermocouple J, 0.1 °C thermocouple K, 0.1 °C thermocouple L, 0.1 °C thermocouple N, 0.1 °C thermocouple R, 0.1 °C thermocouple S, 0.1 °C thermocouple T, 0.1 °C thermocouple U1280/2exp14 mV +/- 1.28 V160/2exp14 mV +/- 160 mV320/2exp14 mV +/- 320 mV40/2exp14 mV +/- 40 mV12.5 mOhm 400 Ohm125 mOhm 4000 Ohm640/2exp14 mV +/- 640 mV80/2exp14 mV +/- 80 mV
    Status Led1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
    Certificate AgencyCE, EAC, UL, CSA, Merchant Navy, RCM
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3673058182
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]26 kg CO2 eq., 26.4483272727
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Cold Junction Compensationexternal by Pt100 probe
    Current Consumption150 mA 3.3 V DC50 mA 24 V DC
    Electrical Connection40 ways 2 connectors
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective Treatmentstandard version
    Recalibrationinternal
    Shock Resistance30 gn
    Sustainable PackagingYes
    Type Of Filterfirst order digital filtering
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Analog/Digital Conversionsigma delta 16 bits
    Package Weight(Lbs)209.000 g
    Warranty (In Months)18
    Customs Code8538908180

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-85 °C, -40-85 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    125.899600761
    Circularity Profile
    ENVEOLI2311046EN
    Eu Rohs Directive
    Compliant By Exemption
    Operating Altitude
    0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    5-95 % 55-55 °C without condensation
    Pep Verification Date
    2023-11-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-60 °C
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    analog input module
    Range Of ProductModicon X80

    ETIM

    ETIM 8
    EC001420
    ETIM 9EC001420

    Surge Protection And Filtering Attributes

    Type Of Filter
    first order digital filtering

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Analogue Input Type
    resistor 4000 Ohm 3 wires, resistor 4000 Ohm 4 wires, temperature probe -200...+850 °C Pt 1000 IEC, voltage +/- 1.28 V, voltage +/- 160 mV, voltage +/- 320 mV, voltage +/- 40 mV, voltage +/- 640 mV, voltage +/- 80 mV, resistor 400 Ohm 2 wires, resistor 400 Ohm 3 wires, resistor 400 Ohm 4 wires, resistor 4000 Ohm 2 wires, temperature probe -100...+260 °C Cu 10, temperature probe -100...+450 °C Pt 100 UL/JIS, temperature probe -100...+450 °C Pt 1000 UL/JIStemperature probe -200...+850 °C Pt 100 IECtemperature probe -60...+180 °C Ni 100, temperature probe -60...+180 °C Ni 1000, thermocouple +130...+1820 °C thermocouple Bthermocouple +270...+1300 °C thermocouple Nthermocouple -200...+600 °C thermocouple Uthermocouple -200...+760 °C thermocouple Jthermocouple -200...+900 °C thermocouple Lthermocouple -270...+1000 °C thermocouple Ethermocouple -270...+1370 °C thermocouple Kthermocouple -270...+400 °C thermocouple Tthermocouple -50...+1769 °C thermocouple R, thermocouple -50...+1769 °C thermocouple S
    Permitted Overload On Inputs
    +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV
    Analogue Input Resolution
    15 bits + sign
    Input Output Isolationisolated, isolated
    Analogue Input Number8
    Input Levellow level
