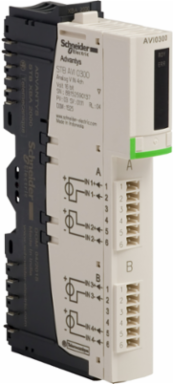

Schneider Electric STBAVI0300K Modicon STB Analog Input Kit, 4 Channels, +/- 10V, 15-Bit Resolution
- MPN: STBAVI0300K
- PPN: SCH-STBAVI0300K
CAD
$756.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for precision and reliability, the Modicon STB Analog Input Kit from Schneider Electric is an essential component for effective automation and control systems. This kit features four channels with a high 15-bit resolution, enabling accurate measurement of analog signals within a range of +/- 10V. Designed to seamlessly integrate within various PLC, HMI, and data acquisition setups, it enhances your system's capability to monitor and respond to real-time data effectively. With its robust design and reliable performance, this analog input kit is a valuable asset for optimizing industrial applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|
| Depth | 70 mm |
|---|
Complementary Attributes
| Absolute Maximum Input | 50 V |
|---|
| Maximum Supply Current For Sensors | 100 mA per input channels |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Data Format | IEC 61131-2, EN 61131-2 |
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail |
| Certificate Agency | FM Class 1 Division 2, UL, CSA, ATEX Cat 3G, C-tick |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.04439455, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 8 kg CO2 eq., 7.7700307143 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511012EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Addressing Requirement | 2 input words |
| Cold Swapping | yes |
| Front Installation Possible | false |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Marking | CE |
| Overvoltage Category | II |
| Product Or Component Type | standard analog input kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | No |
| Software Version | EIME v5.5 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Typical Current Consumption | 90 mA 5 V DC for logic bus |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | true |
| Pep Code | ENVPEP1511012EN |
| Pep Verification Date | 2015-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To monitor and control industrial automation process during 10 years 100% of the time |
| Energy Consumption On Product Lifetime In Kwh | 35.478 |
| Energy Model - Installation [A5] | Electricity Mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; < 1kV; EU-27 |
| Width Nominal | 128.3 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Rack-assembly Possible | true |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 215.784 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 424.359 |
| Customs Code | 8538908180 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Kit Composition | STBAVI0300 module, STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base |
| Integral Linearity | +/- 0.2 %FS, +/- 0.2 %FS |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0192241929, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0062243686 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 21 kg CO2 eq., 20.9466 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Use Carbon Footprint | 20.9466 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Bearing Track Assembly Possible | true |
| Fallback Status | state 0 basic NIMsuser configurable standard NIMs |
| Hot Swapping Fallback | yes for standard NIMs |
| Local Signalling | 1 LED green module status (RDY)1 LED red module error (ERR) |
| Network Type | DC |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supply | power distribution module |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Temperature Drift | +/-0.01 %/°C+/-0.01 %/°C |
| Type Of Filter | single low pass input filter 25 Hz |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | true |
| Differential Linearity | monotonic |
| Database Version | 2015-04 |
| Pcr Version | PEP-PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity Mix; AC; < 1kV; EU-27 |
| Height Nominal | 18.4 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Performance Level According To En Iso 13849-1 | none |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | false |
| Package Weight(Lbs) | 148.000 g |
| Warranty (In Months) | 18 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 20.9466 |
| Water Pollution (M3) Operational Energy Use [B6] | 878.931 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C without derating), -25-70 °C without derating)-25-70 °C without derating), -25-70 °C without derating) |
|---|---|
| Product Compatibility | mounting base STBXBA1000, power distribution module STBPDT3100/3105 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Pep Verification Date | 2015-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 28.7864738257 |
| Environmental Disclosure | ENVPEP1511012EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1511012EN |
| Pcr Version | PEP-PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | standard analog input kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001596 |
|---|
| ETIM 9 | EC001596 |
|---|
Output Attributes
| Analogue Output Number | 0 |
|---|
Surge Protection And Filtering Attributes
| Type Of Filter | single low pass input filter 25 Hz |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Type | voltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V |
|---|---|
| Analogue Input Number | 4 |
| Input Impedance | 400 kOhm |
| Absolute Maximum Input | 50 V |
|---|---|
| Analogue Input Resolution | 15 bits + sign |
| Input Protection Type | protected against short-circuit |
