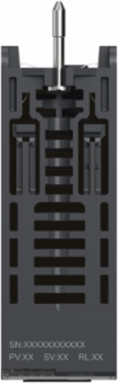

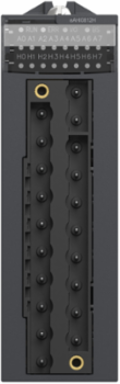

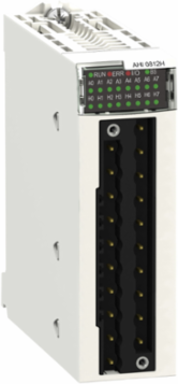

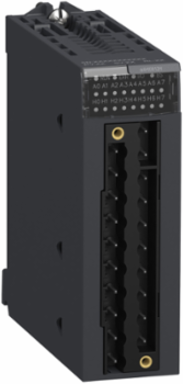

Schneider Electric BMEAHI0812H Modicon X80 Analog Input Module, 8 HART, 4-20mA, CE Certified
- MPN: BMEAHI0812H
- PPN: SCH-BMEAHI0812H
CAD
$4696.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon X80 Analog Input Module by Schneider Electric is an essential component for managing data from analog measuring devices in industrial automation environments. This module is equipped with eight HART inputs, enabling seamless integration with a range of 4-20mA sensors for reliable and accurate monitoring. Its CE certification ensures compliance with safety and performance standards, making it a trusted choice for enhancing process control and system efficiency. Designed to work as part of the larger Modicon X80 platform, this module supports complex applications and provides the flexibility needed for modern control systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Electrical Connection | 20 ways terminal block, Telefast |
| Isolation Voltage | 1000 V DC 60 s between channels1400 V DC 60 s between channels and ground, 1400 V DC 60 s between channels and bus |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0312525091, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0636406303, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 108 kg CO2 eq., 107.9432579668 |
| Local Publishable Date | 2026-07-27 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Checks | broken wire detection |
| Measurement Error | 0.15 % of full scale 25 °C0.55 % of full scale - 25...70 °C |
| Product Or Component Type | analog input module |
| Range Of Product | Modicon X80 |
| Software Version | v5.9.4 |
| Temperature Drift | 50 ppm/°C |
| Total Lifecycle Carbon Footprint | 139 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 165.56 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Application Specific I/O | HART |
| Package Weight(Lbs) | 238.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Environmental Characteristic | gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2 |
| Certificate Agency | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.4240873939 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 31 kg CO2 eq., 30.5369575758 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2311046EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Application Specific I O | HART |
| Function Available | I/O mapping |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | conformal coating |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Topology | point-to-point |
| Pep Code | ENVPEP2311046EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 3 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 138.9991960759 |
| Environmental Disclosure | ENVPEP2311046EN |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2311046EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Product Compatibility | BMEP58... processor, BMXFTB20... terminal block, ABE7CPA31, ABE7CPA02, ABE7CPA03, head module BMECRA31210, BMEXBP... backplane |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2311046EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | analog input module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001420 |
|---|
| ETIM 9 | EC001420 |
|---|
Input Attributes
| Analogue Input Number | 8 |
|---|---|
| Analogue Input Type | current 4...20 mA |
| Input Output Isolation | isolated |
| Analogue Input Resolution | 15 bits + sign |
|---|---|
| Input Impedance | 250 Ohm internally protective resistor (3.6 to 50 Ohm) |
