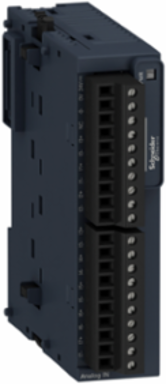

Schneider Electric TM3AI8 Analog Input Module, 8 Inputs, 24V DC, CE Certified, IP20 Rated
- MPN: TM3AI8
- PPN: SCH-TM3AI8
CAD
$430.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Analog Input Module, 8 Inputs, 24V DC, CE Certified, IP20 Rated
Features
- This Schneider Electric Modicon TM3 expansion module delivers 8 high-resolution analog inputs in a compact, snap-on form factor, allowing you to instantly scale up your automated system. It connects directly via a rugged, built-in bus extension connector to Modicon M221, M241, M251, and M262 logic controllers, completely eliminating the need for complex field bus configurations or external communications hardware.
- Designed for maximum field flexibility, each of the 8 inputs can be individually configured via software to accept standard industrial signals including 0-10 V, -10 to +10 V voltage loops, and 0-20 mA or 4-20 mA current loops. This wide signal compatibility allows process control engineers to mix and match pressure transmitters, flow meters, and level sensors on a single module, drastically reducing spare parts inventory and hardware costs.
- Featuring a high-performance 11-bit plus sign (or 12-bit) analog-to-digital converter, this module converts incoming process signals into precise digital data with a resolution of up to 2.44 mV for voltage and 4.88 A for current loops. Combined with a lightning-fast hardware conversion time of just 1 ms per channel, it delivers the real-time, high-accuracy data required for demanding PID loops and sensitive process regulation.
- Engineered to withstand harsh, electrically noisy factory environments, this module features robust photovoltaic and galvanic isolation rated up to 1500 V AC between the input channels and internal logic, and 500 V AC between inputs and the power supply. This exceptional shielding prevents ground loops and eliminates high-frequency electromagnetic interference (EMI), ensuring stable, jitter-free sensor readings even when routed next to high-power variable speed drives (VSDs).
- Equipped with standard, high-density removable screw terminal blocks, this module simplifies pre-wiring and accelerates field replacements since the entire wiring harness can be unplugged without disconnecting individual sensor leads. Bright, front-facing LED status indicators provide immediate, real-time diagnostic visibility for channel health, power supply presence, and bus communication errors, allowing maintenance teams to troubleshoot issues in seconds.
- Fully certified to strict CSA, CE, UKCA, and EAC industrial automation standards, this authentic Modicon component guarantees complete safety and compliance across Canadian and international processing plants. It also holds Green Premium status with strict adherence to RoHS and REACh standards, assuring your plant upgrades align perfectly with modern corporate environmental sustainability mandates.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Japan, Singapore, United States
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cross Talk
- <= 1 LSB, <= 1 LSB
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Non-linearity
- +/- 0.2 %FS, +/- 0.2 %FS
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.520630674486209, 0.5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 14 kg CO2 eq., 14.06864704133924
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Conversion Time
- 1 ms + 1 ms per channel + 1 controller cycle time
- Front Installation Possible
- false
- Insulation
- between input and supply 1500 V ACbetween input and internal logic 500 V AC
- Lsb Value
- 2.44 mV, 0...10 V4.88 mV, - 10...10 V4.88 µA, 0...20 mA3.91 µA, 4...20 mA
- Network Type
- DC
- Product Availability
- Stock - Normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM3
- Returnability
- Yes
- Shock Resistance
- 15 gn 11 ms
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 42 kg CO2 eq.
- Typical Current Consumption
- 40 mA 24 V full load40 mA 5 V DC full load35 mA 5 V no load30 mA 24 V no load
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- System Accessory
- false
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Taiwan, TW
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential In %
- 3
- Width Nominal
- 23.6 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connectionand supply, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
Certificate AgencyCE, UKCA, RCM, EAC, cULus, cULus HazLoc
Carbon Footprint Of The Distribution Phase [A4]0.04862289620287524, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.005734092293107245
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]27 kg CO2 eq., 27.321139884613935
Local Publishable Date2026-03-26
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1402009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Bearing Track Assembly Possiblefalse
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Immunity To Microbreaks10 ms
Local Signalling1 LED green PWR
MarkingCE
Permissible Continuous Overload13 V voltage40 mA current
Product Or Component Typeanalog input module
Radio Standard Gprsfalse
Radio Standard Umtsfalse
Repeat Accuracy+/-0.5 %FS+/-0.5 %FS
Sampling Duration1 ms
Software Versionv6.1
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Temperature Drift+/- 0.01 %FS/°C+/- 0.01 %FS/°C
Type Of Cabletwisted shielded pairs cable <30 m input
Vibration Resistance3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Pep CodeENVPEP1402009EN
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal90 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)216.5 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 41.96477458893536
- Circularity Profile
- ENVEOLI1402009EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1402009EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1402009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Input Attributes
- Analogue Input Resolution
- 12 bits, 11 bits + sign
- Input Impedance
- <= 50 Ohm, >= 1 MOhm<= 50 Ohm, >= 1 MOhm
Analogue Input Typecurrent 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V
Analogue Input Number8
