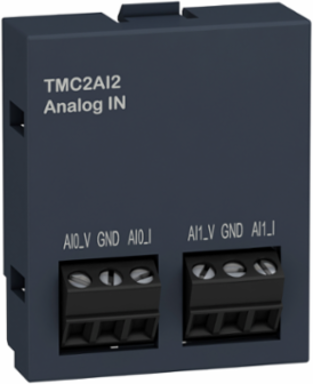

Schneider Electric TMC2AI2 Modicon M221 Analogue Input Cartridge, 2 Inputs, 12-Bit Resolution, 41 mm Height
- MPN: TMC2AI2
- PPN: SCH-TMC2AI2
CAD
$134.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Japan, Mexico, United States |
|---|
| Depth | 15 mm |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m input |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Cross Talk | <= 1 LSB, <= 1 LSB |
| Temperature Drift | +/- 0.02 %FS/°C, +/- 0.02 %FS/°C |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Conversion Time | 20 ms |
| Immunity To Microbreaks | 10 ms |
| Permissible Continuous Overload | 13 V voltage40 mA current |
| Product Or Component Type | analogue input cartridge |
| Repeat Accuracy | +/- 0.5 %FS+/- 0.5 %FS |
| Sampling Duration | 10 ms |
| Type Of Cable | twisted shielded pairs cable |
| Pep Code | ENVPEP1403017EN |
| Width Nominal | 35 mm |
| Package Weight(Lbs) | 30.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Lsb Value | 2.44 mV 0...10 V voltage, 4.88 µA 0...20 mA current3.91 µA 4...20 mA current |
| Non-linearity | +/- 0.01 %FS, +/- 0.01 %FS |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs |
| Insulation | non-insulated between analogue input and internal logic |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M221 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Height Nominal | 41 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Modicon M221C |
| Pep Code | ENVPEP1403017EN |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | analogue input cartridge |
|---|
| Range Of Product | Modicon M221 |
|---|
ETIM
| ETIM 8 | EC001420 |
|---|
| ETIM 9 | EC001420 |
|---|
Input Attributes
| Analogue Input Type | current 4...20 mA, current 0...20 mAvoltage 0...10 V |
|---|---|
| Analogue Input Number | 2 |
| Input Impedance | <= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage<= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage |
|---|---|
| Analogue Input Resolution | 12 bits |
