Modicon M241 Analogue Input Cartridge, 2 Inputs, 16 Bit, 34mm Width
Schneider Electric

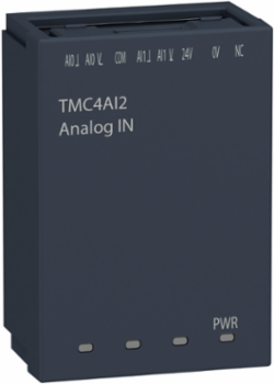

Schneider Electric TMC4AI2 Modicon M241 Analogue Input Cartridge, 2 Inputs, 16 Bit, 34mm Width

  • MPN: TMC4AI2
  • PPN: SCH-TMC4AI2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $268.69

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 analogue current inputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, Mexico, United States
    Depth21 mm

    Complementary Attributes

    Maximum Cable Distance Between Devices
    twisted shielded pairs cable <30 m input

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Insulation
    between input and internal logic 500 V DC, non-insulated between inputs
    Permissible Continuous Overload
    40 mA current, 30 V voltage
    Non-linearity
    +/- 0.05 %FS, +/- 0.05 %FS
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.025887
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    3 kg CO2 eq., 3.1433
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Manufacturing Carbon Footprint
    3.1433
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1403017EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1845
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Cross Talk
    80 dB
    Immunity To Microbreaks
    10 ms
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Modicon M241
    Returnability
    Yes
    Software Version
    EIME v5.6.0.1
    Sustainable Packaging
    Yes
    Type Of Cable
    twisted shielded pairs cable
    Pep Code
    ENVPEP1403017EN
    Pep Verification Date
    2018-08-01
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
    Energy Consumption On Product Lifetime, In Kwh
    63.072
    Energy Model - Installation [A5]
    Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; < 1kV; EU-27
    Height Nominal
    50 mm
    Carbon Footprint (Kg Co2 Eq, Total Life Cycle)
    34.08
    Package Weight(Lbs)
    74 g
    Warranty (In Months)
    18
    Air Pollution (M3) Total Life Cycle
    1606.4
    Air Pollution (M3) Operational Energy Use [B6]
    1330
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    35.58
    Global Warming (Kg.Equivalent.Co2) Total Life Cycle
    34.08
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
    30.902
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    1.9296
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    112.05
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
    115.22
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    34.669
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
    654.34
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    617.18
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    2.302
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    573.06
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    538.7
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    1.7185
    Water Pollution (M3) Total Life Cycle
    1533.1
    Water Pollution (M3) Distribution [A4]
    1.3749
    Water Pollution (M3) End Of Life [C1-c4]
    1.077
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Lsb Value1 mV voltage, 2 µA current
    Temperature Drift+/- 0.006 %FS/°C, +/- 0.006 %FS/°C
    Carbon Footprint Of The Distribution Phase [A4]0.0083606, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.00019114, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]31 kg CO2 eq., 30.902
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityNo
    Use Carbon Footprint30.902
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connection1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for inputs and supply
    Local Signalling1 LED (green) for PWR
    Product Or Component Typeanalogue input cartridge
    Repeat Accuracy+/- 0.2 %FS+/- 0.2 %FS
    Sampling Duration10 ms
    Supply Voltage Limits20.4-28.8 V
    Total Lifecycle Carbon Footprint34 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourcereferent product
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    Recyclability Potential, In %10
    Width Nominal34 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]0.1289
    Air Pollution (M3) Manufacturing [A1-a3]275.57
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle386.52
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]350.76
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]3.1433
    Hazardous Waste Disposed Of (Kg) Total Life Cycle2.0152
    Net Use Of Fresh Water (M3) Total Life Cycle112.07
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle115.96
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle573.55
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]538.7
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]36.971
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle80.782
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]78.48
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]34.178
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle80.199
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]78.48
    Water Pollution (M3) Manufacturing [A1-a3]255.48
    Water Pollution (M3) Operational Energy Use [B6]1275.1

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    34.08
    Environmental Disclosure
    ENVPEP1403017EN
    Packaging Made With Recycled Cardboard
    Yes
    Product Compatibility
    Modicon M241C
    Pep Code
    ENVPEP1403017EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1403017EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2018-08-01
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Type
    analogue input cartridge
    Range Of ProductModicon M241

    ETIM

    ETIM 8
    EC001420
    ETIM 9EC001420

    Input Attributes

    Analogue Input Type
    current 4...20 mA, current 0...20 mA, voltage 0...10 V
    Analogue Input Number
    2
    Input Impedance<= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage<= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage
    Analogue Input Resolution12 bits
