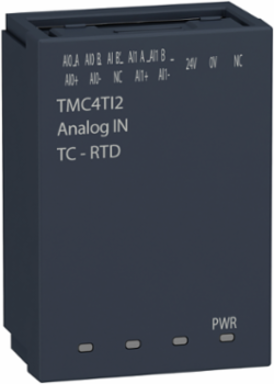

Schneider Electric TMC4TI2 Analogue Input Cartridge for Modicon M241 - 2 Temperature Inputs, 14-Bit Resolution

  • MPN: TMC4TI2
  • PPN: SCH-TMC4TI2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $309.86

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 temperature inputs with 14bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

    Features

    • The Schneider Electric TMC4TI2 is engineered exclusively for the Modicon M241 logic controller range (specifically the M241C series). This direct-fit expansion cartridge inserts directly into the PLC's integrated slot, allowing you to expand your system's temperature monitoring capabilities without taking up valuable DIN rail space or adding bulk to your control panel footprint.
    • Featuring an advanced 14-bit analog input resolution (translating to 16,384 distinct steps) and a highly sensitive Least Significant Value (LSB) of 0.1 C, this module captures minuscule temperature fluctuations with extreme precision. Combined with integrated internal cold-junction compensation for thermocouples and a low temperature drift of just 0.008% FS/ C, you are guaranteed stable, repeatable data essential for strict process control and quality assurance
    • With a rapid 100 ms sampling duration per enabled channel plus one basic scan cycle, this analog cartridge ensures real-time feedback loops for thermal monitoring applications. This high-speed performance allows your EcoStruxure Machine Expert software to react instantly to sudden temperature spikes, preventing unexpected equipment failure and ensuring safe operation.
    • Built to withstand harsh manufacturing environments, the cartridge provides a robust 500V DC galvanic insulation barrier between the analog inputs and the internal logic of your PLC. This safeguard effectively blocks ground loops and common-mode electrical noise from corrupting your data or damaging your core logic controller, maintaining continuous operational uptime.
    • A highly visible green onboard PWR LED provides immediate status signaling, while built-in broken wire and out-of-range sensor detection alerts your system instantly if a probe fails, minimizing diagnostic troubleshooting time.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Indonesia, Mexico
    Depth21 mm

    Complementary Attributes

    Maximum Cable Distance Between Devicestwisted shielded pairs cable <30 m input

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Insulationbetween input and internal logic 500 V DC, non-insulated between inputs
    Non-linearity+/- 0.05 %FS, +/- 0.05 %FS
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0295623148
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 3.5895709877
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Use Carbon Footprint30.902
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connection1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for outputs and supply
    Local Signalling1 LED (green) for PWR
    Permissible Continuous Overload6 V
    Product Or Component Typeanalogue input cartridge
    Repeat Accuracy+/- 0.1 %FS+/- 0.1 %FS
    Sampling Duration100 ms
    Supply Voltage Limits20.4-28.8 V
    Total Lifecycle Carbon Footprint35 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    Height Nominal50 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]0.1289
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]350.76
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]112.05
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]538.7
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]78.48
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]78.48
    Customs Code8517620090
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Temperature Drift+/- 0.008 %FS/°C, +/- 0.008 %FS/°C
    Carbon Footprint Of The Distribution Phase [A4]0.0095475988, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0002182772, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]31 kg CO2 eq., 30.902
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityNo
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1403017EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1845
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Cross Talk80 dB
    Immunity To Microbreaks10 ms
    Lsb Value0.1 °C
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductModicon M241
    ReturnabilityYes
    Software VersionEIME v5.6.0.1
    Sustainable PackagingYes
    Type Of Cabletwisted shielded pairs cable
    Pep CodeENVPEP1403017EN
    Pep Verification Date2018-08-01
    Type Of Verification For The PepIndependent external review
    Functional-unit Descriptionto extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
    Energy Consumption On Product Lifetime In Kwh63.072
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    Width Nominal34 mm
    Package Weight(Lbs)68.000 g
    Warranty (In Months)18
    Air Pollution (M3) Operational Energy Use [B6]1330
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]30.902
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]115.22
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]617.18
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]538.7
    Water Pollution (M3) Operational Energy Use [B6]1275.1

    Environment Attributes Main

    Take BackNo
    China Rohs RegulationX
    Carbon Footprint34.5308991784
    Environmental DisclosureENVPEP1403017EN
    Packaging Made With Recycled CardboardYes
    Product CompatibilityModicon M241C
    Pep CodeENVPEP1403017EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1403017EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2018-08-01
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Typeanalogue input cartridge
    Range Of ProductModicon M241

    ETIM

    ETIM 8EC001420
    ETIM 9EC001420

    Input Attributes

    Analogue Input Typethermocouple - 200...1000 °C thermocouple J, Pt 100 temperature probe - 200...850 °CPt 1000 temperature probe - 200...600 °Cthermocouple - 200...1300 °C thermocouple Kthermocouple 0...1760 °C thermocouple R, thermocouple 0...1760 °C thermocouple Sthermocouple 0...1820 °C thermocouple Bthermocouple - 200...400 °C thermocouple T, thermocouple - 200...1300 °C thermocouple Nthermocouple - 200...800 °C thermocouple ENi 100/Ni 1000 temperature probe - 60...180 °C
    Analogue Input Resolution14 bits
    Analogue Input Number2
    Input Impedance>= 1 MOhm>= 1 MOhm
    Analogue Input Cartridge for Modicon M241 - 2 Temperature Inputs, 14-Bit Resolution
