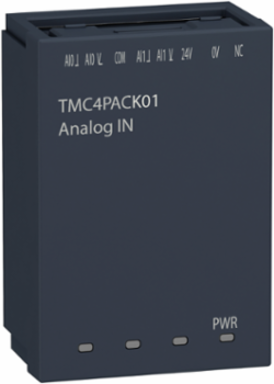

Schneider Electric TMC4PACK01 Modicon M241 Analogue Input Cartridge 2 Inputs 16 Bit Resolution
- MPN: TMC4PACK01
- PPN: SCH-TMC4PACK01
CAD
$322.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cartridge M241 - packaging 2 analog inputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This application cartridge is for Modicon M241 logic controllers. It provides 2 analog inputs (voltage or current) for packaging with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for application cartridge on TM241C*24 . There are 2 slots for application cartridge on TM241C*40.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Depth21 mm
Complementary Attributes
- Maximum Cable Distance Between Devices
- twisted shielded pairs cable <30 m input
Important Information Attributes
- Insulation
- between input and internal logic 500 V DC, non-insulated between inputs
- Temperature Drift
- +/- 0.006 %FS/°C, +/- 0.006 %FS/°C
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0090315123, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0002064784, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 31 kg CO2 eq., 30.902
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Cross Talk
- 80 dB
- Immunity To Microbreaks
- 10 ms
- Permissible Continuous Overload
- 40 mA current30 V voltage
- Product Or Component Type
- analogue input cartridge
- Range Of Product
- Modicon M241
- Returnability
- No
- Software Version
- EIME v5.6.0.1
- Sustainable Packaging
- Yes
- Type Of Cable
- twisted shielded pairs cable
- Pep Code
- ENVPEP1403017EN
- Pep Verification Date
- 2018-08-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
- Energy Consumption On Product Lifetime In Kwh
- 63.072
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 34 mm
- Package Weight(Lbs)
- 0.07 kg
- Warranty (In Months)
- 18
- Air Pollution (M3) Operational Energy Use [B6]
- 1330
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 30.902
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 115.22
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 617.18
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 538.7
- Water Pollution (M3) Operational Energy Use [B6]
- 1275.1
Lsb Value1 mV voltage 0...10 V, 2 µA current 0...20 mA, 2 µA current 4...20 mA
Non-linearity+/- 0.05 %FS, +/- 0.05 %FS
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0279643519
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.3955401235
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Use Carbon Footprint30.902
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Electrical Connection1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for inputs and supply
Local Signalling1 LED (green) for PWR
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationpackaging
Repeat Accuracy+/- 0.2 %FS+/- 0.2 %FS
Sampling Duration10 ms
Supply Voltage Limits20.4-28.8 V
Total Lifecycle Carbon Footprint34 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal50 mm
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]0.1289
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]350.76
Net Use Of Fresh Water (M3) Operational Energy Use [B6]112.05
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]538.7
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]78.48
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]78.48
Customs Code8537109170
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 34.334742466
- Environmental Disclosure
- ENVPEP1403017EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- Modicon M241C
- Pep Code
- ENVPEP1403017EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1403017EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2018-08-01
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- analogue input cartridge
Range Of ProductModicon M241
ETIM
- ETIM 8
- EC001420
ETIM 9EC001420
Input Attributes
- Analogue Input Type
- current 4...20 mA, current 0...20 mAvoltage 0...10 V
- Analogue Input Number
- 2
Input Impedance<= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage<= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage
Analogue Input Resolution16 bits
