Schneider Electric TMC2TI2 Modicon M221 Analogue Input Cartridge, 2 Temperature Inputs, 14-bit Resolution
- MPN: TMC2TI2
- PPN: SCH-TMC2TI2
CAD
$134.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

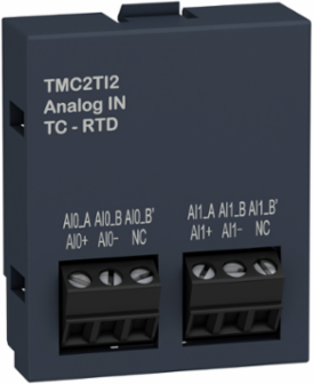

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 temperature inputs with 14bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Japan, Mexico, United States
Depth15 mm
Complementary Attributes
- Maximum Cable Distance Between Devices
- twisted shielded pairs cable <30 m input
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cross Talk
- <= 1 LSB, <= 1 LSB
- Non-linearity
- +/- 0.01 %FS, +/- 0.01 %FS
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0079898148
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 0.970154321
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Electrical Connection
- 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
- Insulation
- non-insulated between analogue input and internal logic
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon M221
- Returnability
- Yes
- Software Version
- EIME v5.6.0.1
- Total Lifecycle Carbon Footprint
- 5 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 41 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 166.25
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 14.4025
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 77.1475
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 67.3375
- Water Pollution (M3) Operational Energy Use [B6]
- 159.3875
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Temperature Drift+/- 0.02 %FS/°C, +/- 0.02 %FS/°C
Carbon Footprint Of The Distribution Phase [A4]0.0025804321, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000589938, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 kg CO2 eq., 3.86275
Local Publishable Date2026-03-26
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Immunity To Microbreaks10 ms
Lsb Value0.1 °C
Product Or Component Typeanalogue input cartridge
Repeat Accuracy+/- 0.5 %FS+/- 0.5 %FS
Sampling Duration125 ms thermocouple250 ms temperature probe
Sustainable PackagingNo
Type Of Cabletwisted shielded pairs cable
Pep CodeENVPEP1403017EN
Pep Verification Date2018-08-01
Type Of Verification For The PepIndependent external review
Functional-unit Descriptionto extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
Energy Consumption On Product Lifetime In Kwh7.884
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal35 mm
Package Weight(Lbs)40.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]43.845
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]67.3375
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]9.81
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]9.81
Customs Code8538908180
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1403017EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2018-08-01
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint4.8435335617
Environmental DisclosureENVPEP1403017EN
Packaging Made With Recycled CardboardYes
Product CompatibilityModicon M221C
Pep CodeENVPEP1403017EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- analogue input cartridge
Range Of ProductModicon M221
ETIM
- ETIM 8
- EC001420
ETIM 9EC001420
Input Attributes
- Analogue Input Type
- thermocouple - 200...1000 °C thermocouple J, Ni 100/Ni 1000 temperature probe - 60...180 °CPt 100 temperature probe - 200...850 °CPt 1000 temperature probe - 200...600 °Cthermocouple - 200...1300 °C thermocouple Kthermocouple 0...1760 °C thermocouple R, thermocouple 0...1760 °C thermocouple Sthermocouple 0...1820 °C thermocouple Bthermocouple - 200...400 °C thermocouple T, thermocouple - 200...1300 °C thermocouple Nthermocouple - 200...800 °C thermocouple Ethermocouple 0...2315 °C thermocouple C
- Analogue Input Resolution
- 14 bits
Analogue Input Number2
Input Impedance>= 1 MOhm>= 1 MOhm
