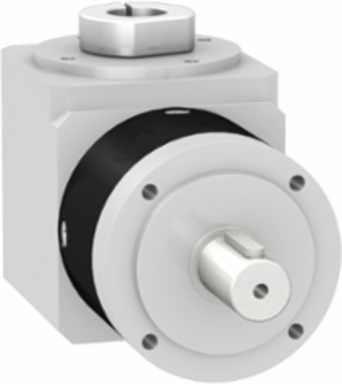

Schneider Electric GBY080025K Angular Gearbox 80mm, Reduction 25:1, 110 N.m, Black Anodized Aluminum

MPN: GBY080025K
PPN: SCH-GBY080025K
UNSPSC: 20101617

$1434.43

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for precision and efficiency, this angular gearbox from Schneider Electric is an essential component for various automation and motion control applications. With an 80mm size and a substantial reduction ratio of 25:1, it delivers impressive torque capability of 110 N.m, making it suitable for driving high-load systems. The gearbox is crafted from black anodized aluminum, ensuring durability and resistance to wear while maintaining a lightweight profile. Ideal for use in servo motor setups, this gearbox stands out for its reliability in demanding environments, providing the performance needed to optimize machinery and enhance operational capabilities.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	5000 g

Complementary Attributes

Minimum Operational Altitude	-25.0 m, -25.0 m
Maximum Operational Altitude	90.0 m
Maximum Permitted Torque	107.0 N.m
Maximum Revolution Speed	7000.0 rpm

Maximum Axial Force Fa	900 N 100 rpm, during 30000 hour at 30°C
Maximum Output Torque	176 N.m 100 rpm 30 °C
Maximum Radial Force Fr	650 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
Maximum Torsional Backlash	15 arc.min

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Reduction Ratio	25, 25:1
Carbon Footprint Of The Distribution Phase A4	0.6451149425, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0126560704, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	1 159 kg CO2 eq., 1158.8
Local Publishable Date	2026-01-12
Serviceability	No
Use Carbon Footprint	1158.8
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Advanced
Market Segmentation	Industrial
Compatibility Code	GBY
Device Short Name	GBY
Gear Box Type	straight teeth
Housing Material	black anodized aluminium
Mounting Position	any position
Noise Level	73 dB 1 m, no-load
Peak Stall Torque	107.0 N.m
Product Or Component Type	angular planetary gearbox
Service Life In Hours	30000 h 100 rpm 30 °C
Shaft Moment Of Inertia	0.973 kg.cm²
Static Torque	0.35 N.m
Torsional Rigidity	6.5 N.m/arcmin
Housing Color	black
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Reduction Ratio Per Size	3:1, 4:1, 5:1, 8:1, 12:1, 20:1, 25:1, 40:1
Carbon Footprint Of The End Of Life Phase C1 To C4	0.4 kg CO2 eq., 0.4467852011
Carbon Footprint Of The Manufacturing Phase A1 To A3	20 kg CO2 eq., 20.158045977
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Continuous Stall Torque	67.0 N.m
Efficiency	94.0 %
Gearbox External Diameter	80 mm
Internal Diameter	19.0 mm
No Load Running Torque	0.1 N.m
Nominal Speed	3800 rpm
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Shaft Material	C 45
Software Version	EIME v5.8.1
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	1 180 kg CO2 eq.
Database Version	2016-11
Length Total	161.5 mm
Customs Code	8483405010
Functional Unit Description	The gearbox allows optimizing the load inertia of the machine process which is driven by the servo motor. The gearbox is converting the torque supplied by the motor to control the movement of the moving load of the machine process during 10 years and a 50% use rate at 108 W.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	2365.2

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Product Compatibility	BSH 70 mm, 2, BSH 70 mm, 3, BMH 70 mm, 1, BMH 70 mm, 2, BMH 70 mm, 3, BSH 70 mm, 1, SH3, MH3, ILM
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	1180.0626021911
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2020-07-01
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Operation	-25-90 °C, -25-90 °C
Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP111245EN
Ip Degree Of Protection	shaft output IP54
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP111245EN
Pcr Version	PCR-ed3-EN-2015 04 02
