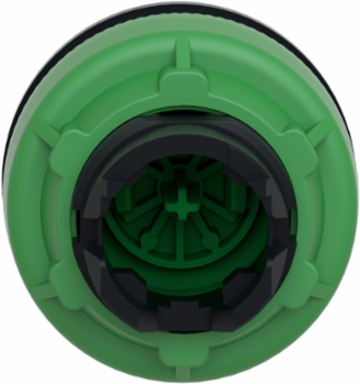

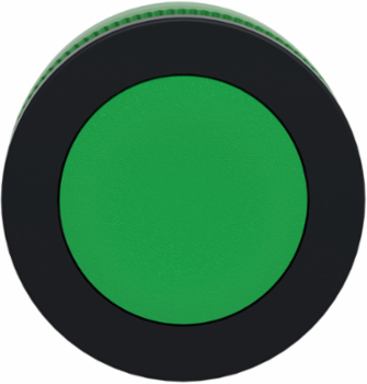

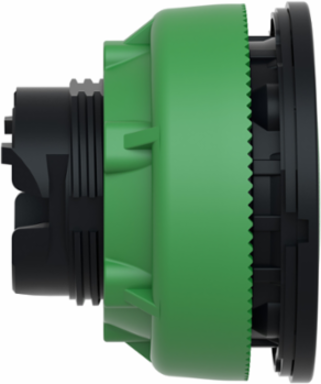

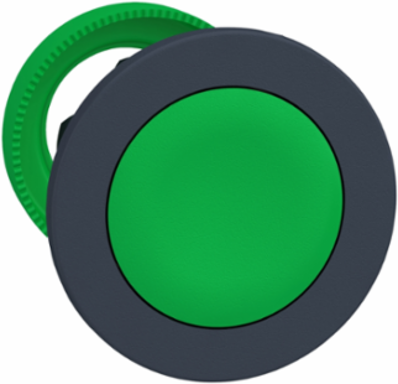

Schneider Electric ZB5FA3 Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked

  • MPN: ZB5FA3
  • PPN: SCH-ZB5FA3
  • UNSPSC: 39122221
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $29.14

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

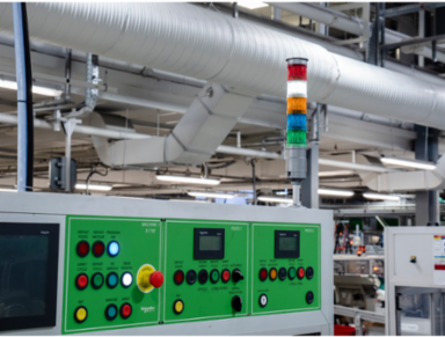

    This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

    Features

    • Quick and easy assembly and disassembly
    • Robustness to withstand harsh environments
    • With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
    • Excellent mechanical connection with operator head
    • A large set of accessories to customize your panels
    • Multiple conncection type available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • Large set of accessories to customize your panels

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance
    Weight30 g

    Physical Attributes

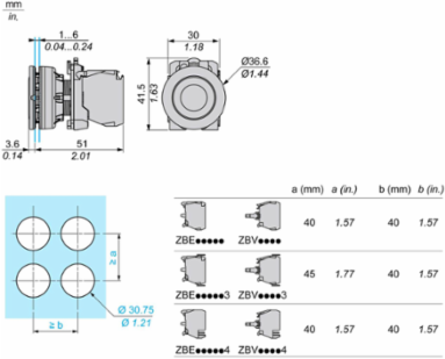

    Cad Overall Depth30 mm
    Cad Overall Width37 mm
    Cad Overall Height37 mm

    Important Information Attributes

    Bezel Materialdark grey plastic, dark grey plastic
    Electrical Composition CodeC1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mounting
    Operator Profile 1 Cap Operator Or Lens Colorgreen
    Carbon Footprint Of The Distribution Phase A40.010590370119131425, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0079964777526897, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content6 %
    Device Short NameZB5
    Group Of Productflush push non illuminated
    Main Grouppush-button
    Mechanical Durability10000000 cycles
    Operator Profilegreen flush, unmarked
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
    Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    Operator Profile 1 Markingunmarked
    Data Sourceextrapolated product
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Customizable1, no
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
    Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.05481991837166852
    Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.22478849601917095
    Local Data StatusPublishable
    Return IndicatorY
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2303008EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Average Percentage Of Recycled Metal Content29 %
    Compatibility CodeZB5
    Gcr BridgeZB5FACUST01
    Head Typebuilt-in-flush
    Markingunmarked
    Mounting Diameter30.5 mm
    Overvoltage Categoryclass II conforming to IEC 60536
    Product Or Component Typehead for non-illuminated push-button
    Range Of ProductHarmony XB5
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Sustainable PackagingYes
    Type Of Operatorspring return
    X C Productflush push non illuminated
    Database Version2022-01
    Cap/Operator Or Lens Colourgreen
    Customs Code8538908180
    Functional Unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    Functional Unit UnitUnit

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint0.2981952622626606
    Environmental DisclosureENVPEP2303008_V2
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2024-03-24
    Psr VersionPSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Product CompatibilityZBYF..., ZBZF32, ZBZF33, ZB5AZ
    Recycled Metal Content At Cr Level29 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2303008EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2303008_V2
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typehead for non-illuminated push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8EC000221
    ETIM 10EC000221
    ETIM 9EC000221

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationbasic element
    Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked
    Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked
    Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked
    Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked
    Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked
    Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked
    Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked
