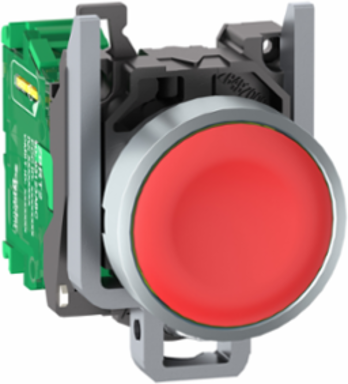

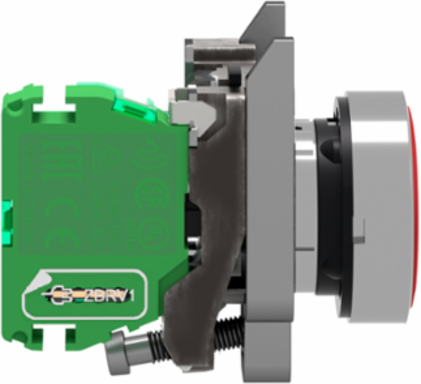

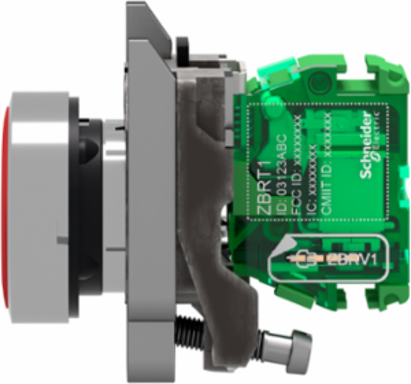

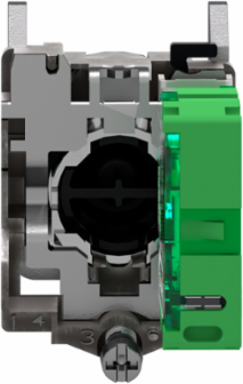

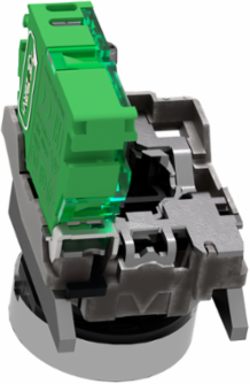

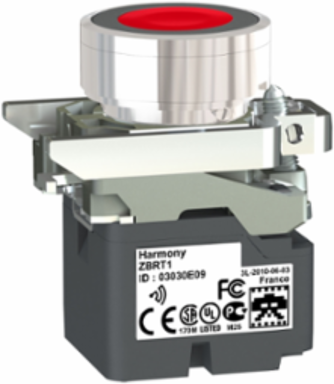

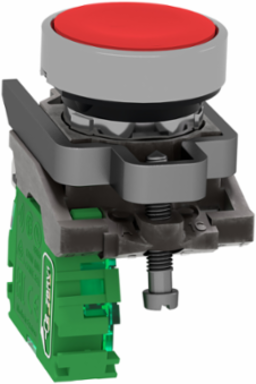

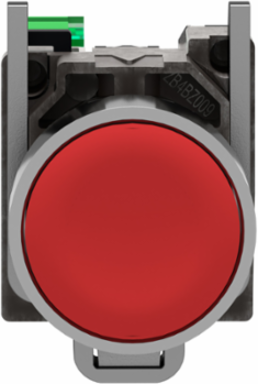

Schneider Electric ZB4RTA4 Harmony XB5R Wireless Push Button Transmitter, 22mm, Spring Return, Red
- MPN: ZB4RTA4
- PPN: SCH-ZB4RTA4
CAD
$121.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This wireless batteryless transmitter push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP30 and IP65, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions The cap is red
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Communications & Management Attributes
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4

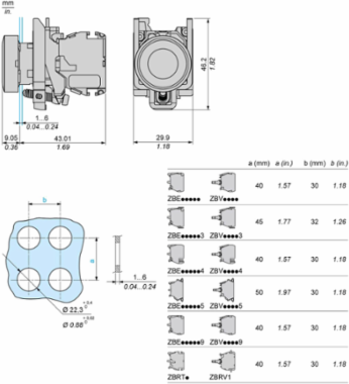

Physical Attributes
- Cad Overall Depth
- 43 mm
- Cad Overall Width
- 30 mm
Cad Overall Height41.5 mm
Embedding Depth42 mm
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Shock Resistance
- 25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Profile 1 Cap Operator Or Lens Color
- red
- Certificate Agency
- C-tick, GOST, BT 2006/95/EC, UL, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0409523307
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.7492394667
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Antenna Gain
- 0 dBi
- Bezel Material
- chromium plated metal
- Electrical Composition Code
- PW1
- Emission Power
- 3 mW
- Fixing Mode
- fixing screw beneath head 0.8-1.2 N.m
- Max Power Consumption In W
- 1 mW
- Mechanical Robustness
- free fall resistance 1000 mm IEC 60068-2-32
- Mounting Diameter
- 22 mm
- Operating Force
- 10 N C/O changing electrical state
- Operator Profile
- red flush, unmarked
- Product Or Component Type
- wireless and batteryless transmitter
- Protective Treatment
- TH
- Response Time
- < 2 ms< 2 ms
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Transmission Frequency
- 2405 MHz
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
- Energy Consumption On Product Lifetime In Kwh
- 52.5746
- Energy Model - Installation [A5]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Radio AgreementANATEL, ARIB T66, FCC, ICASA, RSS
Vibration Resistance+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Operator Profile 1 Markingunmarked
Carbon Footprint Of The Distribution Phase [A4]0.012937632, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0021878912, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]31 kg CO2 eq., 31.0418797733
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1103010EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Antenna Typeomnidirectional
Device Short NameXB5R
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Fixing Collar Materialzamak
Level Or Class5M00G7W
Mechanical Durability1000000 cycles
Modulation TechniqueO-QPSK
Number Of Channels16
Operating Travel4.3 mm total travel)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint32 kg CO2 eq.
Type Of Operatorspring return push-button with transmitter
Pep CodeENVPEP101106EN
Pep Verification Date2020-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity Mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %12
Package Weight(Lbs)82.000 g
Take-backNo
Customs Code8526925000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Directives
- 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 31.8471970939
- Environmental Disclosure
- ENVPEP101106EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP101106EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Ip Degree Of ProtectionIP66 IEC 60529 front face), IP67 IEC 60529 front face), IP69 IEC 60529 front face), IP69K IEC 60529 front face)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1103010EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % -40-70 °C without condensation
Pep Verification Date2020-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- wireless and batteryless transmitter
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
