Schneider Electric ZB5RTA2 Wireless Batteryless Push Button Transmitter, 22 mm, Spring Return, IP66

MPN: ZB5RTA2
PPN: SCH-ZB5RTA2

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$126.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

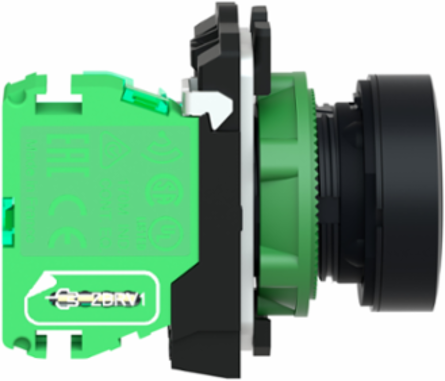

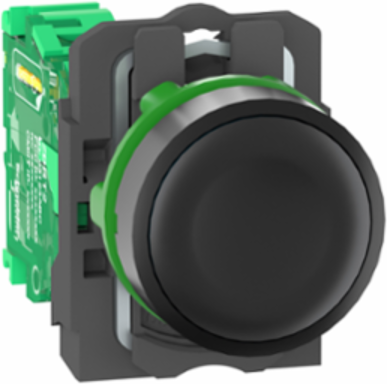

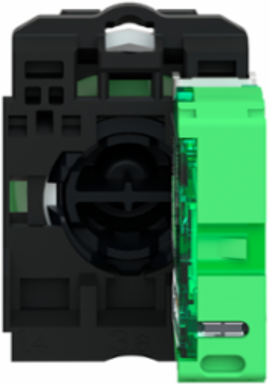

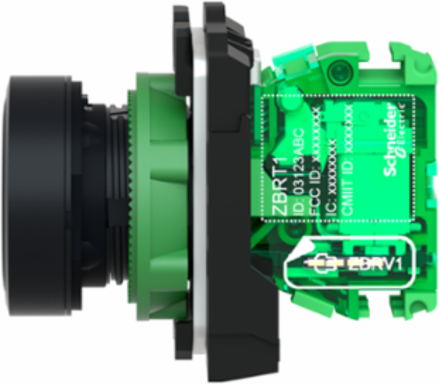

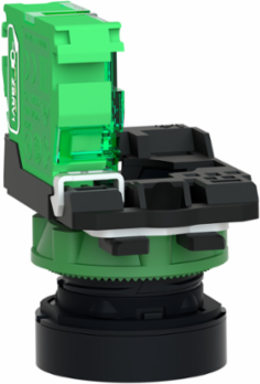

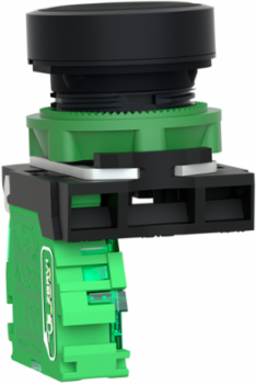

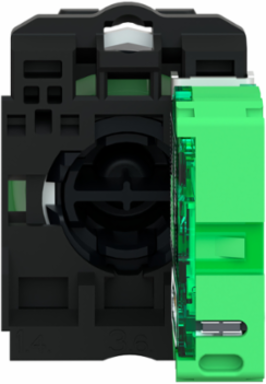

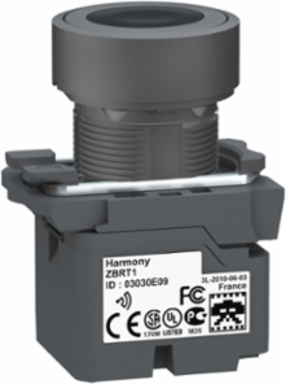

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with black clipped-in cap.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Communications & Management Attributes

Communication Port Protocol	Zigbee green power 2.4 GHz IEEE 802.15.4

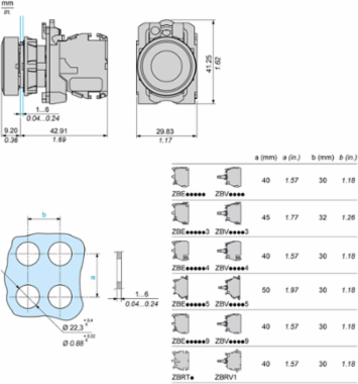

Physical Attributes

Cad Overall Depth	43 mm
Cad Overall Width	30 mm

Cad Overall Height	41.5 mm
Embedding Depth	42 mm

Complementary Attributes

Maximum Sensing Distance	100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Shock Resistance	25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
X C Marking	unmarked
Certificate Agency	BT 2006/95/EC, C-tick, CSA, UL, GOST
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.0566568752
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 0.9763964031
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Antenna Gain	0 dBi
Bezel Material	dark grey plastic
Electrical Composition Code	PW1
Emission Power	3 mW
Fixing Mode	fixing nut beneath head 2-2.4 N.m
Level Or Class	5M00G7W
Marking	unmarked
Mechanical Durability	1000000 cycles
Modulation Technique	O-QPSK
Number Of Channels	16
Operating Travel	4.3 mm total travel)
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Response Time	< 2 ms< 2 ms
Shape Of Signaling Unit Head	round
Station Name	XALD 1...5 cut-outsXALK 2...5 cut-outs
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Type Of Operator	spring return push-button with transmitter
Pep Code	ENVPEP2506038EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	13
Nbr. Of Units In Pkg.	1
Product Repair Index - Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Radio Agreement	ANATEL, ARIB T66, FCC, ICASA, RSS
Vibration Resistance	+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Operator Profile 1 Cap Operator Or Lens Color	black
Carbon Footprint Of The Distribution Phase [A4]	0.0132695317, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0112822555, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2506038EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Antenna Type	omnidirectional
Device Short Name	XB5R
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Fixing Collar Material	plastic
Group Of Product	flush push wireless
Main Group	wireless push-button
Max Power Consumption In W	1 mW
Mechanical Robustness	free fall resistance 1000 mm IEC 60068-2-32
Mounting Diameter	22 mm
Operating Force	10 N C/O changing electrical state
Operator Profile	black flush
Product Or Component Type	wireless and batteryless transmitter
Range Of Product	Harmony XB5
Returnability	Yes
Software Version	v5.9.4
Sustainable Packaging	Yes
Transmission Frequency	2405 MHz
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The product uses 0.72W of power when it is active and 0.6W of power when it is in standby mode for 99.86% of the time over the period of 10 years.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colour	black
Package Weight(Lbs)	38.000 g
Take-back	No
Customs Code	8537109170

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Directives	2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.0576050656
Environmental Disclosure	ENVPEP2506038EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2506038EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529 front face), IP67 IEC 60529 front face), IP69 IEC 60529 front face), IP69K IEC 60529 front face)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2506038EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % -40-70 °C without condensation
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
