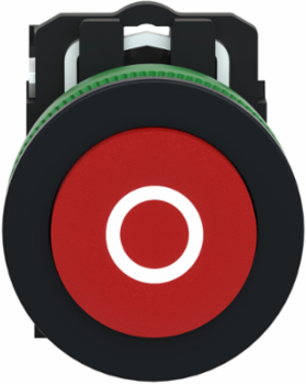

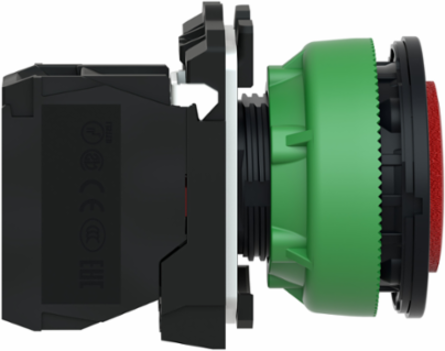

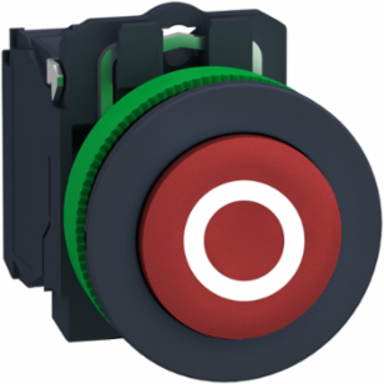

Schneider Electric XB5FL4322 Push button flush mounted, Harmony XB5, plastic, projecting, red, 30mm, spring return, marked O, 1NC
Schneider Electric XB5FL4322 Push button flush mounted, Harmony XB5, plastic, projecting, red, 30mm, spring return, marked O, 1NC
- MPN: XB5FL4322
- PPN: SCH-XB5FL4322
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$45.09/ EA
Description
Push button flush mounted, Harmony XB5, plastic, projecting, red, 30mm, spring return, marked O, 1NC
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
- Allows a clearer view of control features.
- Innovative design without compromise on cost.
- Delivers extremely robust performance even in severe environments.
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- red
Conformance Attributes
- Product Certifications
- UL Listed, CSA, CCC, EAC
StandardsCSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C8201-5-1, CE, JIS C8201-1, ISO 22196:2011, ISO 21702
Important Information Attributes
- Bezel Material
- plastic, dark grey plastic
- Electrical Durability
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Operating Travel
- 1.5 mm NC changing electrical state), 4.3 mm total travel)
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Carbon Footprint Of The Distribution Phase A4
- 0.0157137561, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0118649962, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0.0023951268
- Connections Terminals3
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Cap Operator Or Lens Color
- red
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NC
- Device Short Name
- XB5F
- GCR Bridge
- XB5FLCUST01
- Mechanical Durability
- 10000000 cycles
- Operating Force
- 3.5 N NC changing electrical state
- Overvoltage Category
- class II conforming to IEC 60536
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- push-button
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 0.4 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 600 V 3)IEC 60947-1
- Product Repair Index Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Stocking Flag
- Y
- Pep Code
- ENVPEP2303008EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 600 V 3)IEC 60947-1
Customizable1, no
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm

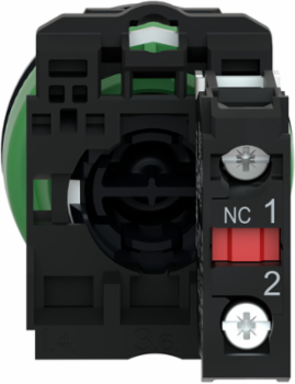

Terminals Description ISO N 1(21-22)NC, (21-22)NC
Ie Rated Operational Current23 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0813210176
Carbon Footprint Of The Manufacturing Phase A1 To A30.3 kg CO2 eq., 0.3350894912
Connections Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Ie Rated Operational Current53 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Fixing Collar Materialplastic
Head Typebuilt-in-flush

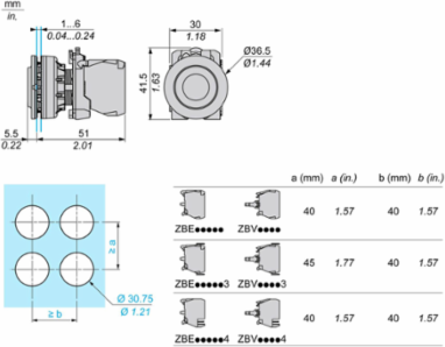

Mounting Diameter30.5 mm
Operator Profilered projecting, O white)
Package Weight Lbs45.0 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorspring return
Ith Conventional Free Air Thermal Current210 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage26 kV IEC 60947-1
Medium DescPush button flush mounted, Harmony XB5, plastic, projecting, red, 30mm, spring return, marked O, 1NC
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch s primary purpose is to turn something on or off in industrial applications. This pushbutton&nbsp;power consumption is 0.002W with 71% active mode for 10 years, and it product&nbsp;complies with IEC 60947-1 standards..
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Ith Conventional Free Air Thermal Current510 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage56 kV IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Circularity Profile
- ENVEOLI2303008EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Product CompatibilityZBYF2101, ZBYF4101, ZBYF6101, ZBYF6102, ZBZF32, ZBZF33, ZB4FBZ007
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.4463843878
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP2303008EN
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2303008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony XB5
Specifications
- Depth
- 55 mm
Overview Attributes
- Device Presentation
- complete product
