APC

APC AP8641 Rack Power Distribution Unit, 0U, 30A, 200V/208V, 21 C13 & 3 C19 Sockets

  • MPN: AP8641
  • UPC: 731304276975
  • PPN: APC-AP8641

CAD

$3664.18

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Features

  • Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
  • Ideal for high density server and networking applications
  • Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
  • Extensive list of compatible products and accessories
  • Stay on top by defining alarm thresholds in order to avoid overloaded circuits
  • Zero U toolless installation

Documentation & Downloads

Specifications

Additional

Amperage30A
Output Voltage200 V, 208 V
Input Frequency50/60 Hz
Height72.01 in (182.9 cm)
Depth2.01 in (5.1 cm)

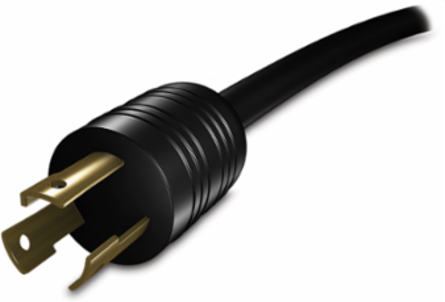

Input Plug TypeNEMA L6-30P
Rack Units0U
ApprovalscUL Listed, PSE, UL Listed, VCCI Class A
WEEEDisposal compliant with EU waste collection standards
LeadFreeYes
Input Voltage200 V, 208 V, 230 V
Load Capacity4992 VA
Cord Length9.84 ft (3.00 m)
Width2.20 in (5.6 cm)
Weight18.14 lb (8.23 kg)
Mounting Positionside, vertical
RohsCompliant with Exemptions
ReachFree of Substances of Very High Concern above the threshold
MercuryFreeYes
Country of OriginIndia
Rack Power Distribution Unit, 0U, 30A, 200V/208V, 21 C13 & 3 C19 Sockets
Rack Power Distribution Unit, 0U, 30A, 200V/208V, 21 C13 & 3 C19 Sockets
Rack Power Distribution Unit, 0U, 30A, 200V/208V, 21 C13 & 3 C19 Sockets
