APC AP8868 Rack Power Distribution Unit, 0U, 10.0kW, 208V, 36 C13 & 6 C19 Sockets

  • MPN: AP8868
  • UPC: 731304289920
  • PPN: APC-AP8868

CAD

$2798.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13, (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separatelymodel AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

Features

  • Metered APC PDU offers real time remote monitoring of connected load
  • Vertical 0U Metered PDU to power servers, switches, and network devices
  • Full-featured network management capability

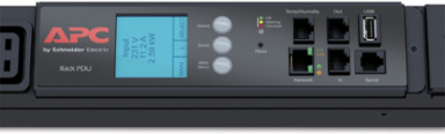

  • Interactive LCD display
  • Active power measurements (volts, amps, kW, kWh)
  • Embedded log memory, Locking IEC receptacles compatible
  • 5.9' power cord, 2-year APC warranty
  • 1-Year Secure Network Management Card subscription included

Documentation & Downloads

Specifications

Additional

Voltage208 V 3 phase
Power Capacity10.0 kW
Height72.01 in (182.9 cm)
Depth2.01 in (5.1 cm)
Cord Length6 ft (1.83 m)
Mounting Locationside, vertical
Number of C13 Outlets36

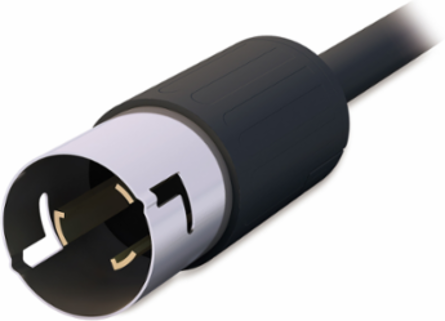

Number of Input Connectors1 CS8365
RoHSCompliant with Exemptions
MercuryFreeYes
Country of OriginIndia
Operating Relative Humidity5 95 %
Storage Temperature Range-13 to 149 F (-25 to 65 C)
Storage Altitude0 to 50,000 ft (0 to 15,240 m)
Max Current35 A
Input Frequency50/60 Hz
Width2.20 in (5.6 cm)
Weight18.78 lb (8.52 kg)
Rack Units0U
PDU TypeMetered
Number of C19 Outlets6
CompliancecUL Listed, UL Listed, VCCI Class A
ReachFreeOfSVHCYes
LeadFreeYes
Operating Temperature Range23 to 140 F (-5 to 60 C)
Operating Altitude0 to 10,000 ft
Storage Relative Humidity5 95 %
Rack Power Distribution Unit, 0U, 10.0kW, 208V, 36 C13 & 6 C19 Sockets
Rack Power Distribution Unit, 0U, 10.0kW, 208V, 36 C13 & 6 C19 Sockets
Rack Power Distribution Unit, 0U, 10.0kW, 208V, 36 C13 & 6 C19 Sockets
Rack Power Distribution Unit, 0U, 10.0kW, 208V, 36 C13 & 6 C19 Sockets
