APC AP8661 Rack Power Distribution PDU, 5.7kW, 208V, 21 C13 & 3 C19, 0U, 72.01 Inch Height
- MPN: AP8661
- UPC: 731304276999
- PPN: APC-AP8661
CAD
$3947.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Features
- Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
- Power sequencing delays allow users to define the order in which to power up or down attached equipment
- Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding
- Current metering provides real-time remote monitoring of connected loads
- Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles
- User-defined alarms warn of potential circuit overloads before critical IT failures occur
Documentation & Downloads
Specifications
Additional
| Input Voltage | 208 V 3 phase |
|---|---|
| Power Capacity | 5.7 kW |
| Line Rated Current | 16 A |
| Depth | 2.01 in (5.1 cm) |
| Height | 72.01 in (182.9 cm) |
| Weight | 15.74 lb (7.14 kg) |
| Cord Length | 6 ft (1.83 m) |
| Product Certifications | cUL Listed, UL Listed, VCCI Class A |
| Storage Temperature Range | -13 to 149 F (-25 to 65 C) |
| Storage Relative Humidity | 5 to 95 % |
| Storage Altitude | 0 to 50000 ft |
| Mercury Free | Yes |
| RoHS | Compliant with Exemptions |
| Reach | Free of Substances of Very High Concern above the threshold |
| Output Voltage | 208 V |
|---|---|
| Load Capacity | 5700 VA |
| Max Line Current | 20 A |
| Width | 2.20 in (5.6 cm) |
| Rack Units | 0U |

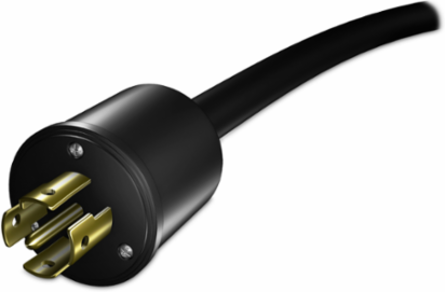

| Input Plug Type | NEMA L21-20P |
| Mounting Position | side, vertical |
| Operating Temperature Range | 23 to 140 F (-5 to 60 C) |
| Operating Relative Humidity | 5 to 95 % |
| Operating Altitude | 0 to 10000 ft |
| Country of Origin | India |
| Lead Free | Yes |
| Reach Free of SVHC | Yes |
