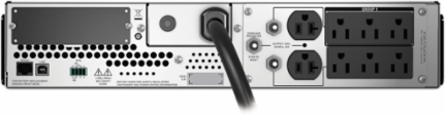

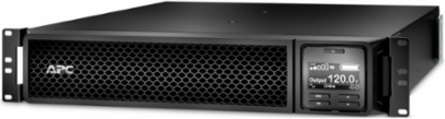

APC SMT2200R2X106 Smart-UPS Line Interactive 2200VA 2U Rackmount 120V with 8 Outlets
- MPN: SMT2200R2X106
- UPC: 731304294085
- PPN: APC-SMT2200R2X106
CAD
$2552.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Line Interactive 2200VA 2U Rackmount 120V with 8 Outlets
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Capacity
- 2200 VA
- Voltage
- 120 V
- Input Frequency
- 50/60 Hz ±3 Hz auto-sensing
- Topology
- Line Interactive
- Harmonic Distortion
- <5%
- Battery Type
- Lead-Acid battery
- Battery Life
- 3-5 years
- Height
- 3.39 in (86 mm)
- Depth
- 26.89 in (683 mm)
- Rack Height
- 2U
- Input Connection Type
- NEMA L5-20P
- Acoustic Level
- 55 dBA
- Operating Altitude
- 0-10000 ft
- Ambient Air Temperature for Storage
- 5-113 °F (-15-45 °C)
- Storage Relative Humidity
- 0-95%
- Compliance
- CSA Certified, RoHS Compliant with Exemptions, Prop 65 Compliant
- Warranty
- 36 months
Output Power Capacity1920 VA (1920 W)
Input Voltage120 V, 75-154 V adjustable
Transfer Time4 ms typical, 8 ms maximum
Waveform TypeSine wave
Surge Energy Rating530 J
Typical Recharge Time3 h
Battery Charge Power164 W
Width18.90 in (480 mm)
Weight93.28 lb (42.31 kg)
Mounting ModeRack-mounted, front
Output Connections6 NEMA 5-15R, 2 NEMA 5-20R
Heat Dissipation215 Btu/h
Ambient Air Temperature for Operation32-104 °F (0-40 °C)
Relative Humidity0-95%
MaterialBlack finish, Mercury Free
Replacement BatteryRBC43, RBC43J-NM
