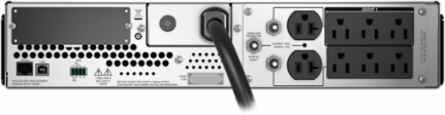

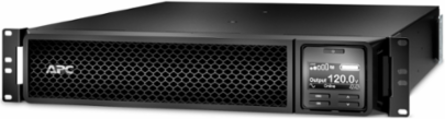

APC SRT2K2RXLNX145 Smart-UPS On-Line 2200VA 2U Rackmount 120V 6x 5-20R+1x L5-20R Outlets
- MPN: SRT2K2RXLNX145
- UPC: 731304406266
- PPN: APC-SRT2K2RXLNX145
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS On-Line 2200VA 2U Rackmount 120V 6x 5-20R+1x L5-20R Outlets
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2200 VA
- Output Connections
- 6 NEMA 5-20R, 1 NEMA L5-20R
- Nominal Output Voltage
- 120 V
- Waveform Type
- Sine wave
- Topology
- Double Conversion Online
- Cable Length
- 10 ft (3.05 m)
- Height
- 3.35 in (85 mm)
- Depth
- 22.99 in (584 mm)
- Input Connection Type
- NEMA 5-20P
- Replacement Battery
- APCRBC141
- ROHS
- Compliant with Exemptions
- Color
- Black
Output Power1800 W
Input Voltage120 V
Typical Recharge Time3 h
Surge Energy Rating340 J
Rack Height2U
Battery TypeLead-Acid battery
Width17.01 in (432 mm)
Weight55.01 lb (24.95 kg)
Mount Positionfront, horizontal
Mercury FreeYes
Energy Efficiency CertificationENERGY STAR V2.0 (USA)
