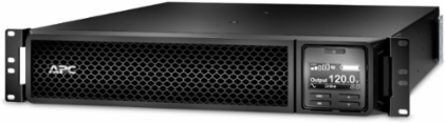

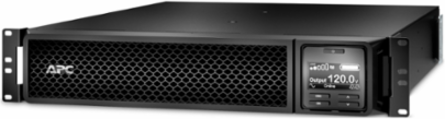

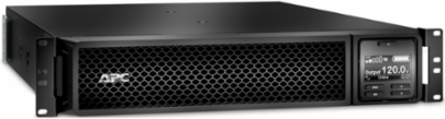

APC SRT2200RMXLA Smart-UPS On-Line 2200VA Rackmount 2U 120V, 6x NEMA 5-20R, Extended Runtime
- MPN: SRT2200RMXLA
- UPC: 731304323051
- PPN: APC-SRT2200RMXLA
CAD
$4104.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Features
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- 2200VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT72RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 2200 VA |
|---|---|
| Input Voltage | 120 V |
| Rack Height | 2U |
| Cord Length | 6 ft (1.83 m) |
| Typical Recharge Time | 3 h |
| Width | 17.01 in (432 mm) |
| Weight | 55.01 lb (24.95 kg) |
| Waveform Type | Sine wave |
| Harmonic Distortion | <2% |
| Acoustic Level | 55 dBA |
| Operating Altitude | 0-10000 ft |
| Operating Temperature Range | 32-104 F (0-40 C) |
| IP Rating | IP20 |
| Mont Position | front, horizontal |
| Topology | Double Conversion Online |
| Battery Replacement | APCRBC141 |
| RoHS | Compliant with Exemptions |
| Color | Black |
| Output Power | 1800 W |
|---|---|
| Output Voltage | 120 V |

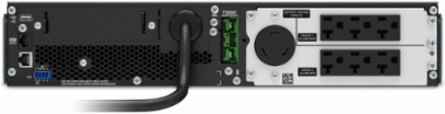

| Output Connections | 6 NEMA 5-20R, 1 NEMA L5-20R |
| Battery Type | Lead-Acid battery |
| Height | 3.35 in (85 mm) |
| Depth | 22.99 in (584 mm) |
| Input Frequency | 40-70 Hz auto-sensing |
| Power Factor (Crest Factor) | 3:1 |
| Output Frequency | 50/60 Hz 3 Hz sync to mains |
| Heat Dissipation | 535 Btu/h |
| Storage Altitude | 0-50000 ft |
| Storage Temperature Range | -4-122 F (-20-50 C) |
| Relative Humidity | 0-95% non-condensing |
| Input Connection Type | NEMA 5-20P |
| Surge Energy Rating | 340 J |
| Approvals | ENERGY STAR V2.0 (USA) |
| Mercury Free | Yes |
| Warranty | 3 years repair or replace (excluding battery), 2 years battery |
