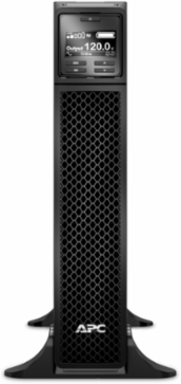

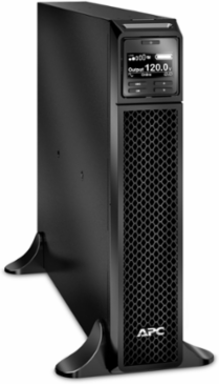

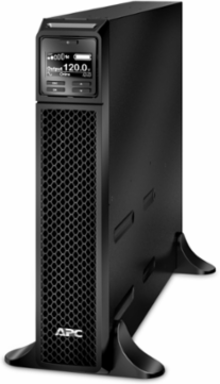

APC SRT3000XLA Smart-UPS On-Line 3kVA Tower 120V 8x 5-20R + 1x L5-30R, 69 lb, Eco & Green Mode
- MPN: SRT3000XLA
- UPC: 731304325185
- PPN: APC-SRT3000XLA
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L5-30P input and 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- 3kVA/2.7kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK4 or SRTRK3 sold separately)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT96RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Documentation & Downloads
Specifications
Additional
| Power Rating | 3000 VA, 2700 W |
|---|---|
| Output Voltage | 120 V |

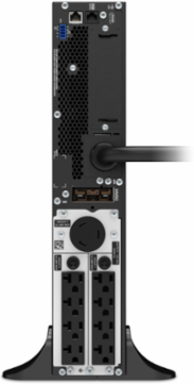

| Output Connection Type | 8 NEMA 5-20R, 1 NEMA L5-30R |
| Cord Length | 8 ft (2.44 m) |
| Width | 17.01 in (432 mm) |
| Weight | 69 lb (31.3 kg) |
| Battery Type | Lead-Acid battery |
| Typical Recharge Time | 3 h |
| Compliance | ENERGY STAR V2.0 (USA), RoHS Compliant with Exemptions |
| Color | Black |
| Input Voltage | 120 V |
|---|---|
| Input Connection Type | NEMA L5-30P |
| Waveform Type | Sine wave |
| Height | 3.35 in (85 mm) |
| Depth | 25.00 in (635 mm) |
| Mount Position | front, vertical |
| Battery Voltage | 96 V |
| Surge Energy Rating | 340 J |
| Replacement Battery | APCRBC152 |
| Topology | Double Conversion Online |
