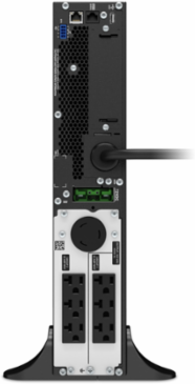

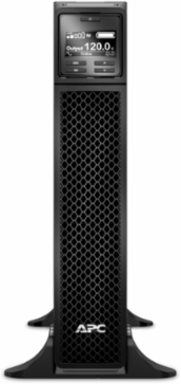

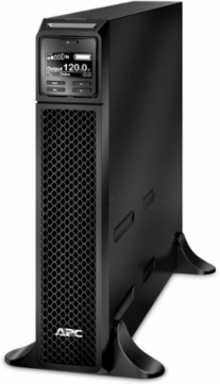

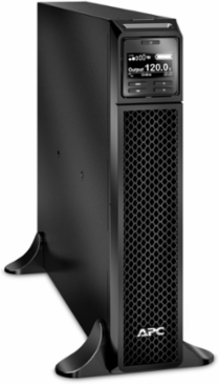

APC SRT2200XLA APC Smart-UPS On-Line, 2200VA, Tower, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/O rail kit
APC SRT2200XLA APC Smart-UPS On-Line, 2200VA, Tower, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/O rail kit
- MPN: SRT2200XLA
- UPC: 731304325161
- PPN: APC-SRT2200XLA
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3544.78/ EA
Description
APC Smart-UPS On-Line, 2200VA, Tower, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/O rail kit
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications
Conformance
- Approvals
- ENERGY STAR V2.0 (USA)
Battery
- ReplacementBattery
- APCRBC141
- BatteryType
- Lead-Acid battery
TypicalRechargeTime3 h
Sustainability
- Rohs
- Compliant By Exemption
- TakeBack
- Yes
- WEEE
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Compliance Date
- 2025/12/10 00:00:00
- Packaging without single use plastic
- No
- Sustainable packaging
- No
ReachReference contains Substances of Very High Concern above the threshold
CaliforniaProposition65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint5857.8011584463
Packaging with recycled cardboardYes
Removable batteryUser replaceable
Weight, Height, Width, Depth
- Weight
- 55.12 lb(US) (25 kg)
- Width
- 17.01 in (432 mm) in
Height3.35 in (85 mm) in
Depth22.99 in (584 mm) in
Logistical informations
- Country of origin
- PH
Customs number8504407018
Physical
- ProductOrientation
- lower
- SurgeEnergyRating
- 340 J
ColorBlack
MountPositionfront, vertical
Input
- CordLength
- 5.91 ft (1.8 m)
- InputVoltage
- 120 V AC 1 phase
InputConnectionTypeNEMA 5-20P
Output
- OutputPowerCapacity
- 2200 VA
- NominalOutputVoltage
- 120 V 1 phase
- Waveformtype
- Sine wave
OutputConnections6 NEMA5-20R, 1 NEMAL5-20R
TopologyOn-Line
Specifications
- Country of Origin
- Philippines
Warranty
- Warranty
- UPS: 36 month(s), Battery: 24 month(s)
Downloads
