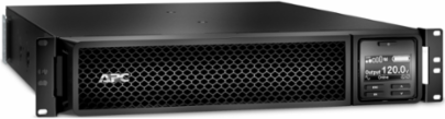

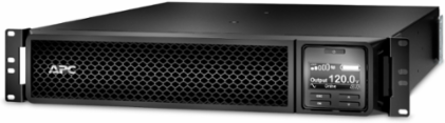

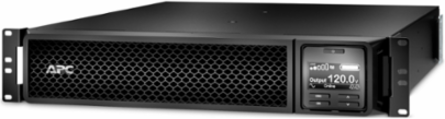

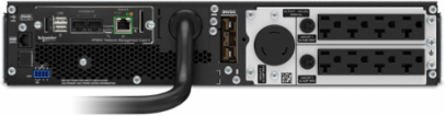

APC SRT3000RMXLA-NC Smart-UPS On-Line, 3000 VA, Rackmount 2U, 120V, 8x NEMA 5-20R, 1x NEMA L5-30R

Smart-UPS On-Line, 3000 VA, Rackmount 2U, 120V, 8x NEMA 5-20R, 1x NEMA L5-30R - https://media.province-electric.com/xml_apc/2025q4/images/medium/b0f6480986856ca5c0503fb368543e628ba1e26d-medium.png

Smart-UPS On-Line, 3000 VA, Rackmount 2U, 120V, 8x NEMA 5-20R, 1x NEMA L5-30R - https://media.province-electric.com/xml_apc/2025q4/images/medium/ef65f228afceb629d54d530d8dfe1cdbec4a6613-medium.png

Smart-UPS On-Line, 3000 VA, Rackmount 2U, 120V, 8x NEMA 5-20R, 1x NEMA L5-30R - https://media.province-electric.com/xml_apc/2025q4/images/medium/c84973e0b84d913ca940ed9847c07038dc64859b-medium.png

Smart-UPS On-Line, 3000 VA, Rackmount 2U, 120V, 8x NEMA 5-20R, 1x NEMA L5-30R - https://media.province-electric.com/xml_apc/2025q4/images/medium/f480c12cce34c210b6f8c7924daf11faa4355927-medium.png

Smart-UPS On-Line, 3000 VA, Rackmount 2U, 120V, 8x NEMA 5-20R, 1x NEMA L5-30R

APC SRT3000RMXLA-NC Smart-UPS On-Line, 3000 VA, Rackmount 2U, 120V, 8x NEMA 5-20R, 1x NEMA L5-30R

MPN: SRT3000RMXLA-NC
UPC: 731304325178
PPN: APC-SRT3000RMXLA-NC

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Features

LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
10/100 BaseT Connection — Connect the device to a network using a 10 or 100 BaseT connection
ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Specifications

Output Power Capacity: 3000 VA

Input Voltage: 120 V

Input Connection Type: NEMA L5-30P

Waveform Type: Sine wave

Topology: Double Conversion Online

Battery Type: Lead-Acid battery

Weight: 69 lb (31.3 kg)

Height: 3.35 in (85 mm)

Depth: 25 in (635 mm)

Product Orientation: lower

Approvals: ENERGY STAR V2.0 (USA)

RoHS Compliance: Compliant with Exemptions

Power Output2700 W

Output Voltage120 V

Output Connections8 NEMA 5-20R, 1 NEMA L5-30R

Surge Energy Rating340 J

Rack Height2U

Typical Recharge Time3 h

Dimensions3.35 in x 17.01 in x 25 in (H x W x D)

Width17.01 in (432 mm)

Mounting Positionfront, horizontal

Replacement BatteryAPCRBC152

Mercury FreeYes

ColorBlack

Downloads
