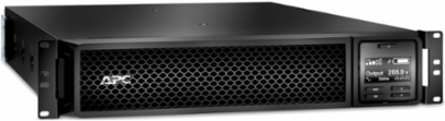

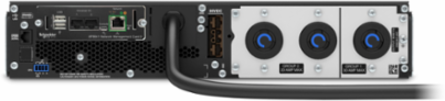

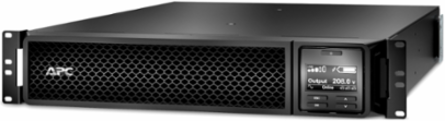

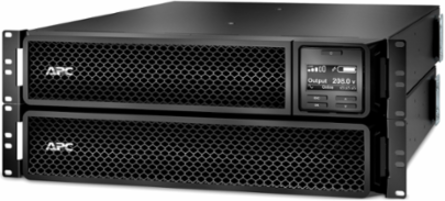

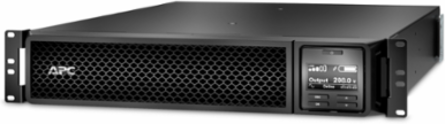

APC SRT3000RMXLT-NC Smart-UPS 3kVA Rackmount 2U 208V, 2x L6-20R, 1x L6-30R, 69 lb
- MPN: SRT3000RMXLT-NC
- UPC: 731304327608
- PPN: APC-SRT3000RMXLT-NC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 3kVA Rackmount 2U 208V, 2x L6-20R, 1x L6-30R, 69 lb
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- 10/100 BaseT Connection — Connect the device to a network using a 10 or 100 BaseT connection
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 3000 VA
- Input Voltage
- 208 V, 240 V
- Input Connection Type
- NEMA L6-20P
- Topology
- Double Conversion Online
- Input Frequency
- 40-70 Hz auto-sensing
- Acoustic Level
- 55 dBA
- Operating Altitude
- 0-10000 ft
- Operating Temperature
- 32-104 °F (0-40 °C)
- Surge Energy Rating
- 340 J
- Dimensions (H x W x D)
- 3.35 in x 17.01 in x 25.00 in
- Battery Type
- Lead-Acid battery
- Typical Recharge Time
- 3 h
- Mount Position
- Front, horizontal
- IP Rating
- IP20
- Warranty
- 3 years repair or replace; 2 years battery
- Mercury Free
- Yes
- WEEE
- EU waste disposal compliant
- California Proposition 65
- Prop 65 Compliant
Power2700 W
Nominal Output Voltage208 V
Output Connections2 NEMA L6-20R, 1 NEMA L6-30R
Waveform TypeSine wave
Output Frequency50/60 Hz ±3 Hz sync to mains
Heat Dissipation773 Btu/h
Storage Altitude0-50000 ft
Storage Temperature5-113 °F (-15-45 °C)
Rack Height2U
Weight69 lb (31.3 kg)
Battery Voltage96 V
Battery Life3-5 years
Replacement Battery ModelAPCRBC152
Relative Humidity0-95% non-condensing
ComplianceENERGY STAR V2.0 (USA)
RoHSCompliant with Exemptions
ReachContains SVHC above threshold
ColorBlack
