Federal Signal AV1-LED-024B Audible Visual Flashing LED Light, UL and cUL, 24VDC, Blue
Federal Signal AV1-LED-024B Audible Visual Flashing LED Light, UL and cUL, 24VDC, Blue
- MPN: AV1-LED-024B
- UPC: 782979227526
- PPN: FDS-AV1-LED-024B
- UNSPSC: 39111706
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$521.93/ EA
Description
The model AV1-LED warning light is a combination audible/visual signal. The warning light also features a 100% polycarbonate housing that is rated for Type 3R rain-tight applications.All AV1-LED alert light units feature a twist-and-lock lens design to allow for tool-free access to the LED. The Fresnel lens provides superior visibility in all directions.The integrated buzzer provides 85 dBa output @ 10 feet (95 dBa @ 1M). The unit can operate in two ways: flashing/buzzer combination or flashing only. The LED flash pattern can be field adjusted to 60 FPM or 75 FPM, via a jumper on the PC board.Each unit is factory-assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located at the base of the unit.
Features
- Available in 24VDC and 120VAC

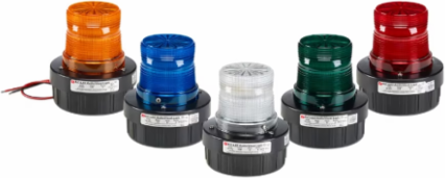

- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- 50,000 hour LED
- Surface, integrated 1/2-inch NPT pipe, and 4-inch electrical box mount
- Twist-off lens for easy access
- Internal buzzer produces 85 dBa at 10' (95 dBa @ 1m)
- Flexible operation allows the unit to independently flash without buzzer if desired
- PLC compatible
- Type 3R enclosure
- UL and cUL Listed
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Black
- Certification Listing
- UL, cUL
- dBa 10 Ft
- 85
- Diameter (mm)
- 146.304
- Availability
- Ships in 10 business days
- Mount Type
- 1/2-Inch Pipe, 4" Square Electrical Box, Surface
- Operating Temp.
- -31˚ to +150˚F (-35˚ to +66˚C)
- Visual Signals Lens Color
- Blue
- Depth
- 6.48 in, 16.4592 cm
- Diameter
- 5.76 in, 14.6304 cm
Weight1.25 lbs
Candela Power Peak125
dBa 1 Meter95
Diameter (in)5.76
Flashes Per Minute60-75
Lens ColorBlue
Operating Current Amps0.27
Operating Voltage24 Vdc
Visual Signals Operating Voltage24VDC
Height6.48 in, 16.4592 cm
