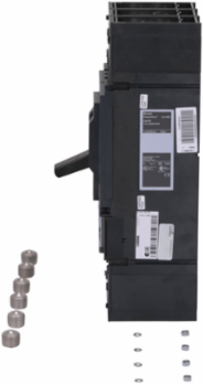

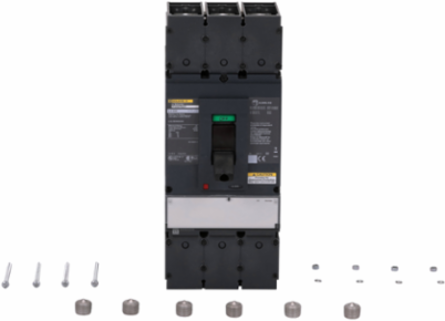

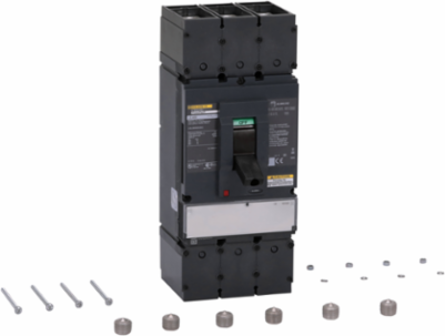

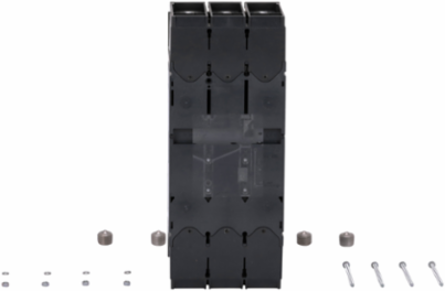

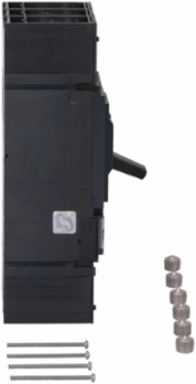

Square D LGL36000S40X PowerPact L Circuit Breaker, 400A, 3 Pole, 600V AC, Magnetic
- MPN: LGL36000S40X
- UPC: 785901076728
- PPN: SCH-LGL36000S40X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT L, 400A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

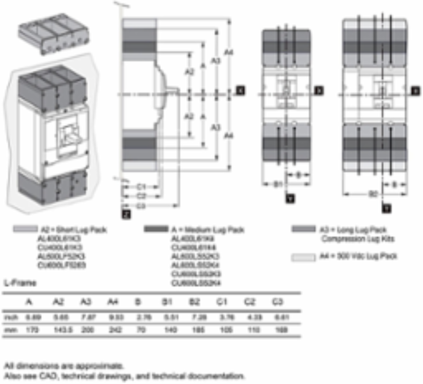

Depth6.61 in
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Carbon Footprint Of The Distribution Phase [A4]
- 2.2541032228721054, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 2.174451155372958, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 740 kg CO2 eq., 739.5261148517615
- Local Publishable Date
- 2026-01-15
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- x 2/0 AWG...500 kcmil ( aluminium/copper )
- Energy Efficiency Optimized
- False
- Mounting Mode
- unit mount
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- PowerPact L
- Software Version
- v6.2.5-6
- Terminal Identifier
- AL600LS52K3
- Total Lifecycle Carbon Footprint
- 806 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 58
- Width Nominal
- 5.51 in
- Short-circuit Withstand
- 65 kA 240 V UL 48935 kA 480 V UL 48918 kA 600 V UL 489
- Package Weight(Lbs)
- 7.8 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, CSA, IEC
Carbon Footprint Of The End-of-life Phase [C1 To C4]12 kg CO2 eq., 11.811166221616121
Carbon Footprint Of The Manufacturing Phase [A1 To A3]50 kg CO2 eq., 50.244662405362945
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2206029_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2543
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker TypeL-Frame
Magnetic Tripping Current4800-4800 A
Number Of Poles3P
Product Or Component Typeautomatic switch
ReturnabilityYes
Sustainable PackagingNo
Tightening Torque50-50 N.m 70-240 mm² (2/0 AWG...500 kcmil)
Trip Unit Technologymagnetic
Pep CodeENVPEP2206029EN
Pep Verification Date2025-06-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal13.38 in
[Ue] Rated Operational Voltage600 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 806.0104978569856
- Environmental Disclosure
- ENVPEP2206029EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2206029_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- automatic switch
Range Of ProductPowerPact L
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
