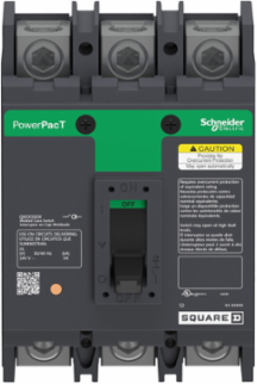

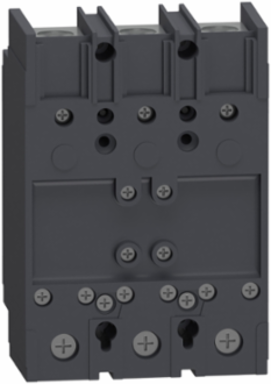

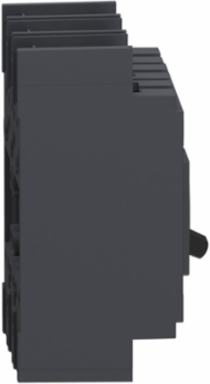

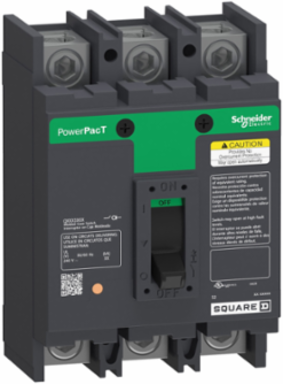

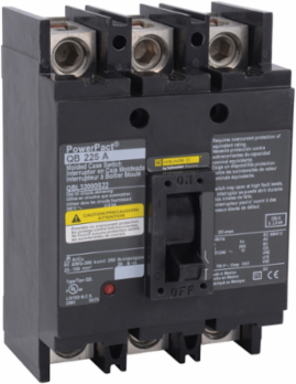

Square D QBL32000S22 PowerPact Q 225A 3 Pole Automatic Switch 240V Magnetic Trip
- MPN: QBL32000S22
- UPC: 785901417859
- PPN: SCH-QBL32000S22
CAD
$1167.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT Q-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the Q-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. This switch has lugs on both the line and load sides. This PowerPacT Q, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 10kA at 240VAC. PowerPacT Q automatic switches comply to UL, CSA, ANCE, and IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth14.49 in
Complementary Attributes
- Line Rated Current
- 225 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6198783862898292, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.41436454334715167, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 45 kg CO2 eq., 45.350942261826184
- Local Publishable Date
- 2025-12-06
- Stocking Flag
- N
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Type
- Q-Frame
- Magnetic Tripping Current
- 4500-4500 A
- Number Of Poles
- 3P
- Product Or Component Type
- automatic switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 65 kg CO2 eq.
- Pep Code
- ENVPEP2311048_V2
- Pep Verification Date
- 2025-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 16.24 in
- [Ue] Rated Operational Voltage
- 240 V AC
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 2.136 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, UL Listed, IEC
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 3.620324773879172
Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 14.700646228636082
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gaugex AWG 4...300 kcmil ( aluminium/copper )
Energy Efficiency OptimizedFalse
Mounting Modeunit mount
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPowerPact Q
Software Versionv6.2.5-6
Tightening Torque28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Trip Unit Technologymagnetic
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %56
Width Nominal16.54 in
Short-circuit Withstand10 kA 240 V UL 489
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2311048_V2
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2311048_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint64.70615619397842
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- automatic switch
Range Of ProductPowerPact Q
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
