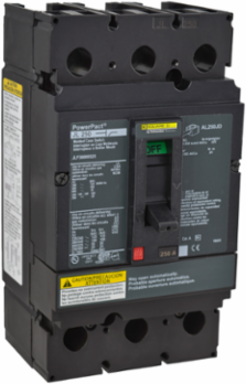

Square D JLP36000S25 Automatic switch, PowerPacT J, 250A, 3 pole, 600VAC, 50kA, lugs, magnetic
Square D JLP36000S25 Automatic switch, PowerPacT J, 250A, 3 pole, 600VAC, 50kA, lugs, magnetic
- MPN: JLP36000S25
- UPC: 785901661023
- PPN: SCH-JLP36000S25
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. H- and J-frame circuit breakers with thermal-magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194°F (90°C) rated wire. This PowerPact J, automatic switch has a rated current of 250A and has a rated operational voltage of 600VAC. This switch is a 3-pole, unit mount with a breaking capacity of 50kA@600VAC. This product has a magnetic trip unit technology. This switch has a magnetic tripping capacity of 3125A. Dimensions for this product are 7.52 in (H),4.12 in (W), 5 in (D). This switch complies to UL listed, CE & CSA standards.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206031EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206031EN
Complementary
- Terminal Identifier
- AL250JD
- Tightening Torque
- 26-26 N.m 95-185 mm² AWG 3/0...350 kcmil)
- Magnetic Tripping Current
- 3125-3125 A
- Mounting Mode
- unit mount
- Poles Description
- 3P
- Width
- 4.12 in
- [Ue] Rated Operational Voltage
- 600 V AC || 250 V DC
Height7.52 in
Breaking Capacity CodeL
Electrical Connectionlugs, load || terminal nut, line
Short-Circuit Withstand125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489 || 20 kA 250 V UL 489
[In] Rated Current250 A
Depth5 in
Awg Gaugex AWG 3/0...350 kcmil ( aluminum/copper )
Environment
- Product Certifications
- IEC || CSA || CCC || UL listed || CE || NMX
Specifications
- Range Of Product
- PowerPact J
- Trip Unit Technology
- magnetic
Product Or Component Typeautomatic switch
