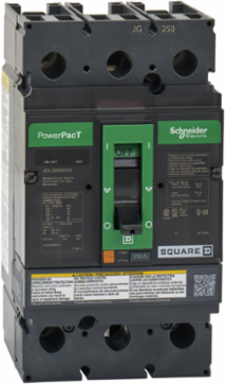

Square D JGL26000S25 PowerPact J Automatic Switch 250A 2-Pole 600VAC Magnetic Trip
- MPN: JGL26000S25
- UPC: 785901683247
- PPN: SCH-JGL26000S25
CAD
$3588.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT J-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 2 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, ANCE, and IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth5 in
Complementary Attributes
- Line Rated Current
- 250 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6554238601889661, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.009651929011281793, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 356 kg CO2 eq., 355.6658902426966
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- x 3/0 AWG...350 kcmil ( aluminium/copper )
- Magnetic Tripping Current
- 3125-3125 A
- Number Of Poles
- 2P
- Product Or Component Type
- automatic switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Tightening Torque
- 26-26 N.m 95-185 mm² (3/0 AWG...350 kcmil)
- Trip Unit Technology
- magnetic
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 739.125
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 7.52 in
- [Ue] Rated Operational Voltage
- 600 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyIEC, UL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 3.8687571226078603
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 12.77614809696986
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206031_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker TypeJ-frame
Mounting Modeunit mount
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPowerPact J
Software Versionv6.2.4
Terminal IdentifierAL250JD
Total Lifecycle Carbon Footprint373 kg CO2 eq.
Pep CodeENVPEP2206031EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %51
Width Nominal2.74 in
Short-circuit Withstand65 kA 240 V UL 48935 kA 480 V UL 48918 kA 600 V UL 489
Package Weight(Lbs)2.268 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 372.9758712514746
- Environmental Disclosure
- ENVPEP2206031EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2206031_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206031EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- automatic switch
Range Of ProductPowerPact J
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
