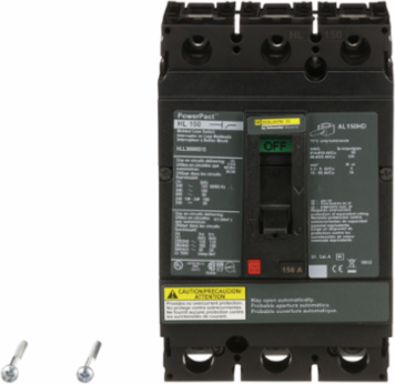

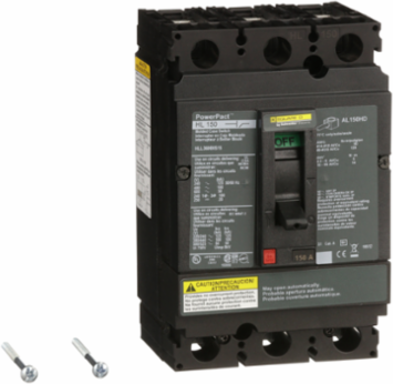

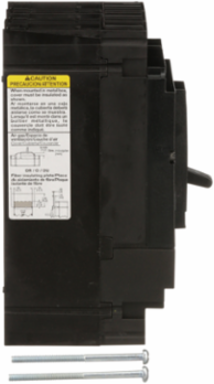

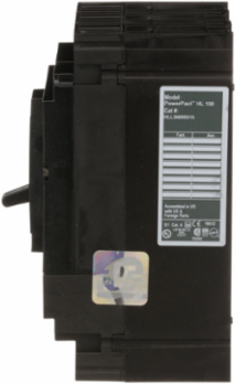

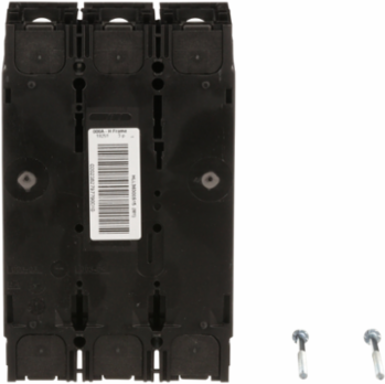

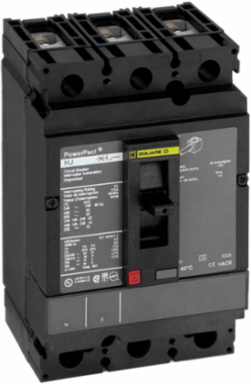

Square D HLL36000S15 PowerPacT H Automatic Switch 150A 3 Pole 600VAC 50kA Lugs
- MPN: HLL36000S15
- UPC: 785901683186
- PPN: SCH-HLL36000S15
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT H-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the H-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT H-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch is unit mount and has lugs on both line and load sides. This PowerPacT H, 150A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT H automatic switches comply to UL, CSA, ANCE, and IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth4.36 in
Complementary Attributes
- Line Rated Current
- 150 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4393051232805979, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02105042935025172, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 435 kg CO2 eq., 435.3433588653077
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Mode
- unit mount
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- PowerPact H
- Software Version
- v6.2.4
- Terminal Identifier
- AL150HD
- Total Lifecycle Carbon Footprint
- 450 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 904.689
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 6.4 in
- [Ue] Rated Operational Voltage
- 600 V AC250 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCE, IEC, CCC, CSA, NMX, UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 3.9080579711615675
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 10.635774284338401
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2206027_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gaugex 14 AWG...3/0 AWG ( aluminium/copper )
Magnetic Tripping Current2250-2250 A
Number Of Poles3P
Product Or Component Typeautomatic switch
ReturnabilityYes
Sustainable PackagingNo
Tightening Torque5-5 N.m 2.5-95 mm² (14 AWG...3/0 AWG)
Trip Unit Technologymagnetic
Pep CodeENVPEP2206027EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %45
Width Nominal2.12 in
Short-circuit Withstand125 kA 240 V UL 489100 kA 480 V UL 48950 kA 600 V UL 489
Package Weight(Lbs)2.09 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 450.3475466734385
- Environmental Disclosure
- ENVPEP2206027EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2206027_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- automatic switch
Range Of ProductPowerPact H
ETIM
- ETIM 8
- EC000228
ETIM 9EC000228
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
