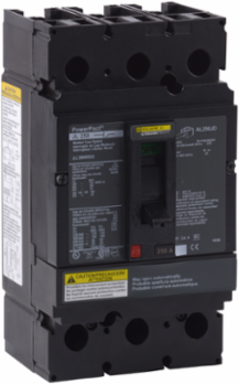

Square D JLL36000S25 PowerPact J Automatic Switch, 250A, 3-Pole, 600VAC, Magnetic Trip

MPN: JLL36000S25
UPC: 785901883814
PPN: SCH-JLL36000S25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT J-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, ANCE, and IEC standards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States, ZZ

Depth	5 in

Complementary Attributes

Line Rated Current	250 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	lugs, line, lugs, load
Carbon Footprint Of The Distribution Phase [A4]	0.6877904705686683, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.010128567480974722, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	533 kg CO2 eq., 533.4171231265248
Local Publishable Date	2025-11-13
Stocking Flag	Y
Device Type	LV equipment - LV switch - disconnector
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	x 3/0 AWG...350 kcmil ( aluminium/copper )
Magnetic Tripping Current	3125-3125 A
Number Of Poles	3P
Product Or Component Type	automatic switch
Returnability	No
Sustainable Packaging	No
Tightening Torque	26-26 N.m 95-185 mm² (3/0 AWG...350 kcmil)
Trip Unit Technology	magnetic
Pep Code	ENVPEP2206031EN
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	51
Width Nominal	2.74 in
Short-circuit Withstand	125 kA 240 V UL 489100 kA 480 V UL 48950 kA 600 V UL 489
Package Weight(Lbs)	2.380 kg
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	CCC, CSA, IEC, UL Listed, CE, NMX
Carbon Footprint Of The End-of-life Phase [C1 To C4]	4 kg CO2 eq., 4.059806857057631
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	13 kg CO2 eq., 13.407068990647383
Local Data Status	Publishable
Return Indicator	N
Stock Policy	1
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2206031_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2539
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Mode	unit mount
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	PowerPact J
Software Version	v6.2.4
Terminal Identifier	AL250JD
Total Lifecycle Carbon Footprint	552 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1108.6875
Energy Model - Installation [A5]	[A5]
Energy Model - End Of Life [C1-c4]	[C1 - C4]
Height Nominal	7.52 in
[Ue] Rated Operational Voltage	600 V AC250 V DC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	551.5819180122794
Environmental Disclosure	ENVPEP2206031EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3-2023 12 08

Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2206031_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2206031EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
