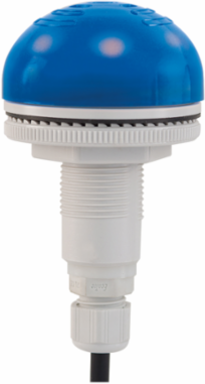

Federal Signal PM22C-012-024B AV Combo, 22mm, 12-24VAC/DC, M12 Cable, Blue
- MPN: PM22C-012-024B
- UPC: 782979251897
- PPN: FDS-PM22C-012-024B
- UNSPSC: 39111706
CAD
$239.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model PM22C is a multifunctional panel mount LED and piezoelectric sounder combination that offers 7 different sound/flash pattern combinations, controllable via independent electric contacts. Combinations include 1) steady light only, 2) continuous sound only, 3) steady light + continuous sound, 4) strobe (300FPM) + intermittent tone SYNC, 5) 2x flash (60FPM) + 2x intermittent tone SYNC, 6) 3x flash (40FPM) + 3x intermittent tone SYNC and 7) random light + random tone.Model PM22C available in 12-24VAC/DC and two electrical connection options: M12 Cable Gland with 12" (300 mm) leads or M12 4-Pin Quick Connect (-Q). It is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring.The PM22 Series offers a self-extinguishing polycarbonate body that protects against vibrations, dust and other atmospheric elements.
Features
- Available in 12-24VAC/DC
- 7 flash/tone combinations:steady light
- steady lightcontinuous tone
- continuous tonesteady light + tone
- steady light + tonestrobe + intermittent tone SYNC
- strobe + intermittent tone SYNC2x flash + 2x intermittent tone SYNC
- 2x flash + 2x intermittent tone SYNC3x flash + 3x intermittent tone SYNC
- 3x flash + 3x intermittent tone SYNCrandom light + random tone
- random light + random tone
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- Opaque polycarbonate lens
- 360 degrees light-diffusing design
- Type 3R, IP65 enclosure
- CE and UKCA Certified
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
- Body Color
- Gray
- Harness Connection Type
- Cable Gland
- dBa 10 Ft
- 82
- Diameter (mm)
- 50.038
- Availability
- Ships in 10 Business days
- Mount Type
- Panel
- Operating Temp.
- -22˚ to +122˚F (-30˚ to +50˚C)
- Visual Signals Connection
- Cable Gland
- Depth
- 3.44 in, 8.7376 cm
- Diameter
- 1.97 in, 5.0038 cm
Weight0.09 lbs
Certification ListingCE, UL, cUL
dBa 1 Meter92
Diameter (in)1.97
Flash Pattern TypeSteady/Flashing/Strobe/Random
Lens ColorBlue
Operating Current Amps0.045 @ 12VDC/ 0.045 @ 24VDC/0.09 @ 24VAC
Operating Voltage12-24 Vac/dc
Visual Signals Lens ColorBlue
Height3.44 in, 8.7376 cm
