Federal Signal PM22C-024RGB AV Multicolor Combo, 22mm, 24VDC, M12 Cable
- MPN: PM22C-024RGB
- UPC: 782979252108
- PPN: FDS-PM22C-024RGB
- UNSPSC: 39111706
CAD
$269.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

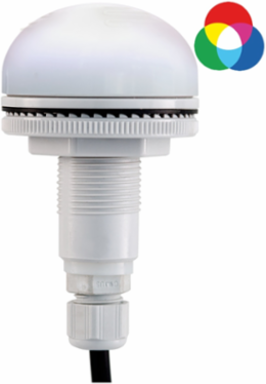

Model PM22C RGB is a steady, multicolor panel mount LED and piezoelectric sounder combination. The model offers seven color options combined with a continuous tone, within the same unit.Model PM22C RGB is available in 24VDC and two electrical connection options: M12 Cable Gland with 12" (300 mm) leads or M12 4-Pin Quick Connect (-Q). It is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring.The PM22 Series offers a self-extinguishing polycarbonate body that protects against vibrations, dust and other atmospheric elements.
Features
- Available in 24VDC
- Multicolor LED produces Blue, Clear, Cyan, Green, Magenta, Red and Yellow
- Steady light effect and continuous tone combination
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- 50,000 hour LED
- Opaque polycarbonate lens
- Type 3R, IP65 enclosure
- CE Certified
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
- Body Color
- Gray
- Harness Connection Type
- Cable Gland
- dBa 10 Ft
- 75
- Diameter (mm)
- 50.038
- Lens Color
- Clear
- Mount Type
- Panel
- Visual Signals Connection
- Cable Gland
- Height
- 3.44 in, 8.7376 cm
Weight0.09 lbs
Certification ListingCE, UL, cUL
dBa 1 Meter85
Diameter (in)1.97
Flash Pattern TypeSteady
Lens StyleOpaque
Operating Temp.-22˚ to +122˚F (-30˚ to +50˚C)
Depth3.44 in, 8.7376 cm
Diameter1.97 in, 5.0038 cm
