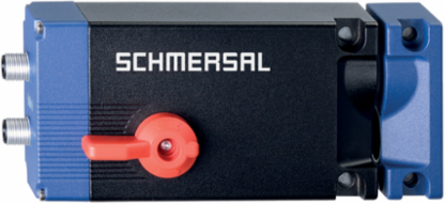

Schmersal 103003591 AZM400 Solenoid Interlock, 24 VDC, SIL 3, 2 Safety Contacts, IP66/IP67

MPN: 103003591
PPN: SCM-103003591

$1191.18

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

AZM400 Solenoid Interlock, 24 VDC, SIL 3, 2 Safety Contacts, IP66/IP67

Features

Universal coding with RFID technology
2 Connector M12, 8- and 5-poles
Guard locking monitored
2 Diagnostic outputs
Emergency exit

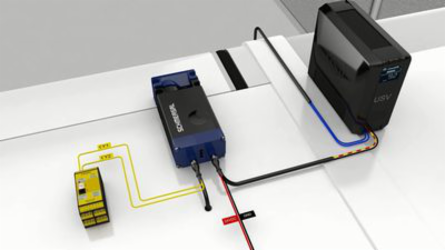

Electric manual release with auxiliary voltage
Bistable, motor-driven system
Clamping force 10.000
Release possible against lateral forces up to 300 N
PL e / cat. 4 / SIL 3 for interlocking and guard locking function
Two-channel input signal of the guard locking function
Operation on P/P- and P/N-switching outputs
High tolerance to door misalignment

Documentation & Downloads

Specifications

Electrical data - Fail-safe digital outputs

Rated operating current (safety outputs)	250 mA
Current leakage I	1.5 mA
Current, Utilisation category DC-12	0.25 A
Current, Utilisation category DC-13	0.25 A
Classification ZVEI CB24I, Sink	C1 \| C2

Voltage drop U	2 V
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC
Classification ZVEI CB24I, Source	C2

Safety appraisal - Guard locking

Performance level, up to	e
PFH-value	1.80 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Control category	4
PFD value	1.60 x 10⁻⁴
Mission Time	20 Year(s)

Safety appraisal

Standards	IEC 61508 \| EN ISO 13849-1

Electrical data

Operating Current	100 mA
Current consumption at 24V, minimum	10 mA
No-load supply current I	100 mA
Operating current	50 mA
Switching frequency, approx.	0.3 Hz
Minimal average cycle time (with continuous operation)	20 s

Current consumption, maximum	600 mA
Current consumption at 24V, maximum	15 mA
Rated operating voltage	24 VDC
Required rated short-circuit current to EN 60947-5-1	100 A
Open / close cycle (Motor), minimum	3

Electrical data - Fail-safe digital inputs

Classification ZVEI CB24I, Sink	C1

Safety appraisal - Interlocking

Performance level, up to	e
PFH-value	1.00 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Control category	4
PFD value	9.00 x 10⁻⁵
Mission Time	20 Year(s)

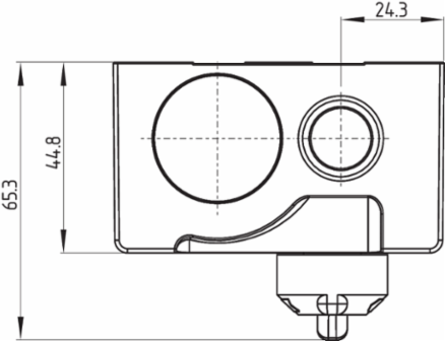

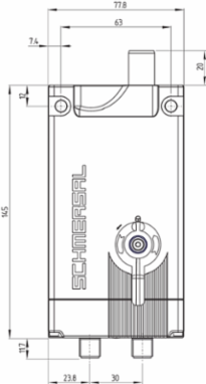

Mechanical data - Dimensions

Length of sensor	65.3 mm
Height of sensor	166.7 mm

Width of sensor	77.8 mm

Electrical data - Control inputs

Switching thresholds of the control inputs	−3 V … 5 V (Low) \| 15 V … 30 V (High)
Classification ZVEI CB24I, Sink	C0

Allowable discrepancy time (input), maximum	10 s
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Pin assignment

Connection	Connector 1
PIN 2	E1 Control input 1
PIN 4	Y1 Safety output 1
PIN 6	E3 Control input 3
PIN 8	E2 Control input 2
PIN 1	A1 Supply voltage UB
PIN 3	A2 GND
PIN 5	FE (functional earth connection)

PIN 1	OUT2 Diagnostic output 2
PIN 3	n.c.
PIN 5	OUT1 Diagnostic output 1
PIN 7	Y2 Safety output 2

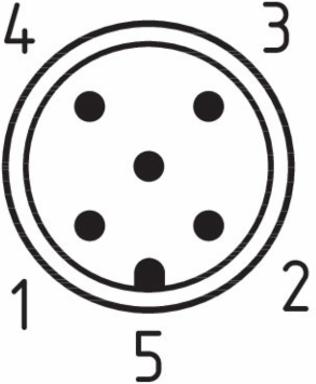

Connection	Connector 2
PIN 2	H2 GND
PIN 4	H1 Auxiliary voltage Uhe

Scope of delivery

Included in delivery	Actuators must be ordered separately.

Delivery scope of Mounting material	2 x M6 (10.9)

Ambient conditions - Insulation value

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution to VDE 0100	3

General data - Features

Guard locking monitored	Yes
Electronic manual release	Yes
Short-circuit recognition	Yes
Integral System Diagnostics, status	Yes
Number of safety contacts	2

Emergency exit	Yes
Short circuit detection	Yes
Safety functions	Yes
Number of diagnostic signals	2

General data

Standards	IEC 60947-5-1 \| EN ISO 13849-1 \| IEC 61508 \| EN ISO 14119
Coding level according to ISO 14119	Low
Enclosure material	Light alloy die-casting
Time to readiness, maximum	1,500 ms

general information	Universal coding
Active principle	Magnetic field \| RFID
Gross weight	774 g
Reaction time, maximum	100 ms

Ambient conditions

Degree of protection	IP66 to EN 60529 \| IP67 to EN 60529
Ambient temperature, maximum	+55 °C
Storage and transport temperature, maximum	+85 °C
Restistance to shock	30 g / 11 ms

Ambient temperature, minimum	-20 °C
Storage and transport temperature, minimum	-40 °C
Resistance to vibrations to EN 60068-2-6	10 … 150 Hz, amplitude 0.35 mm
Protection rating	III

Electrical data - Diagnostic output

Versions	short-circuit proof, p-type
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC
Note	The diagnostic output are not safety relevant outputs!

Voltage drop U	2 V
Current, Utilisation category DC-12	0.05 A
Current, Utilisation category DC-13	0.05 A

Mechanical data - Connection technique

Terminal Connector	2 connector M12, 8 and 5 pin

Mechanical data

Interlocking principle	bistable
Note (Mechanical lifetime)	Which have a lateral force Ftrans = 100 N: 100.000 operations
Clamping force in accordance with EN ISO 14119 F	10,000 N
Lateral force at bolt return, maximal (against locked door)	300 N
Tightening torque of the screw	8 Nm

Mechanical life, minimum	1,000,000 Operations
Minimum distance devices	30 mm
Clamping force, maximum F	13,000 N
Note (Lateral force at bolt return)	Does not apply to emergency exit, Bowden cable and manual release
