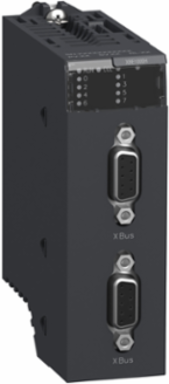

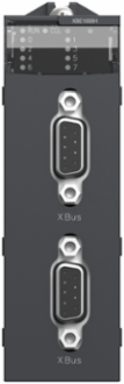

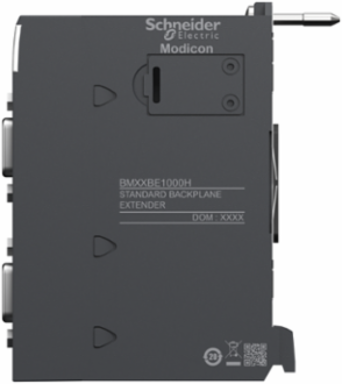

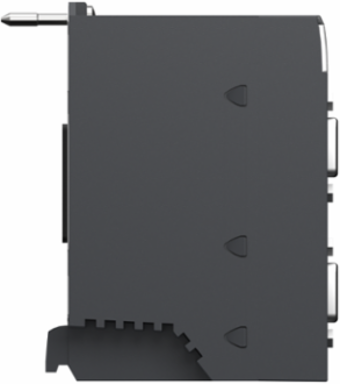

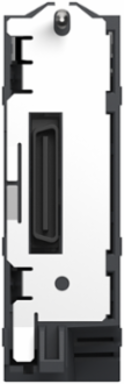

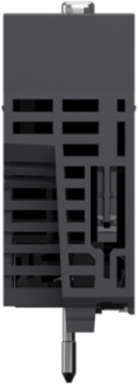

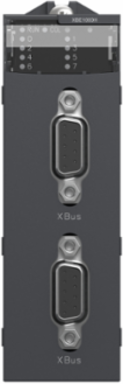

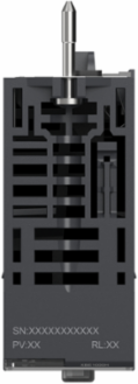

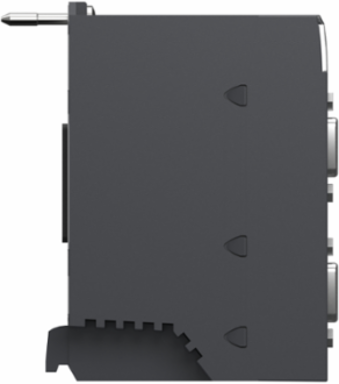

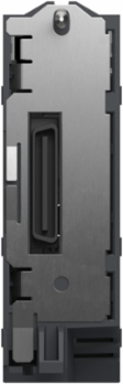

Schneider Electric BMXXBE1000H Modicon M340 Ruggedized Backplane Expander for Multiracks Configuration, IP20
- MPN: BMXXBE1000H
- PPN: SCH-BMXXBE1000H
CAD
$1030.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This ruggedized backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for severe environments, medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP1200, BMXXBP0800, BMXXBP0600 and BMXXBP0400 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- 160 mA 24 V DC, 22 mA 3.3 V DC
- Local Signalling
- 1 LED green operating status (RUN) bus, 1 LED red collision error (COL) rack, 4 LEDs green rack adresses status
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0235381395, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0357865116, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 181 kg CO2 eq., 181.2512044013
- Local Publishable Date
- 2026-02-24
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2310002EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Electrical Connection
- 2 female connectors SUB-D 9
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2310002EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC
- Recyclability Potential, In %
- 26
- Accessory / Separate Part Destination
- for multiracks configuration
- Accessory / Separate Part Designation
- ruggedized backplane expander
- Package Weight(Lbs)
- 180.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristic3C3 conforming to IEC 60721-3-3, 3C4 conforming to IEC 60721-3-3, gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, hazardous location class I division 2
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3755197674
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 5.5976860465
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Module Formatstandard
Product Specific Applicationfor severe environments
Range Of ProductModicon M340 automation platform
Software Versionv5.9.4
Total Lifecycle Carbon Footprint187 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe X-Bus Rack Expansion Module has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4W (160 mA at 24 V DC).& 10& 10IP degree of protection: IP20& 10IEC 61000-6-5, IEC 61850-3,UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh308.4694
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC
Accessory / Separate Part Categoryextension accessory
Accessory / Separate Part Typebackplane
Nbr. Of Units In Pkg.1
Take-backNo
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-3.933
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- BMXXBP1200, BMXXBP0800, BMXXBP0600, BMXXBP0400
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2310002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2310002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Take BackNo
China Rohs RegulationX
Carbon Footprint187.2837348664
Environmental DisclosureENVPEP2310002EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity10-95 % without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- Modicon M340 automation platform
ETIM
- ETIM 8
- EC000810
ETIM 9EC000810
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
