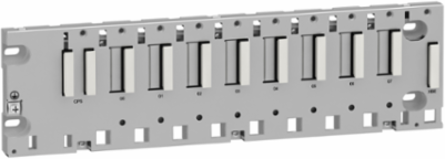

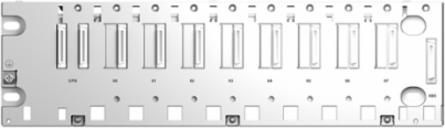

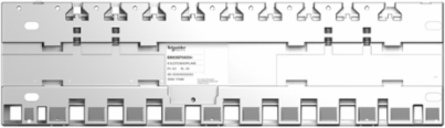

Schneider Electric BMXXBP0800H Modicon X80 Backplane, 8 Slots, IP20, Ruggedized, -25 to 70 C
- MPN: BMXXBP0800H
- PPN: SCH-BMXXBP0800H
CAD
$541.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 8 bus X slots. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a power of 2W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.95kg. It is suitable for severe environments, medium to large process applications. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina
Depth19 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Environmental Characteristic
- gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, hazardous location class I division 2
- Certificate Agency
- CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.3850964583
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.0501666667
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Number Of Slots
- 8 bus X
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
- Software Version
- EIME v5.9.3
- Total Lifecycle Carbon Footprint
- 107 kg CO2 eq.
- Database Version
- 2020-12
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 15
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Height Nominal
- 103.7 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 6.6129
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Fixing Modeby 4 M4/M5/M6 screws panel, by 4 M4/M5/M6 screws mounting plate, by clips 35 mm symmetrical DIN rail
Carbon Footprint Of The Distribution Phase [A4]0.136065, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0100511458, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]96 kg CO2 eq., 96.4985507246
Local Publishable Date2026-02-19
Stocking FlagN
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2203018EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2007
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Electrical Connection1 connector (XBE) expansion module
Power Consumption In W2.21 W
Product Or Component Typeruggedized backplane
Protective Treatmentconformal coating
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2203018EN
Pep Verification Date2022-04-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionX80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh157.68
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Width Nominal372.8 mm
Package Weight(Lbs)1.048 kg
Warranty (In Months)18
Water Pollution (M3) Manufacturing [A1-a3]995.8125
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- BMXP34 processor, BMXCPS power supply, I/O module, specific application module
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2203018EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2203018EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Take BackNo
China Rohs RegulationX
Carbon Footprint107.0799299955
Environmental DisclosureENVPEP2203018EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity10-95 % without condensation
Pep Verification Date2022-04-01
Type Of Verification For The PepIndependent internal review
