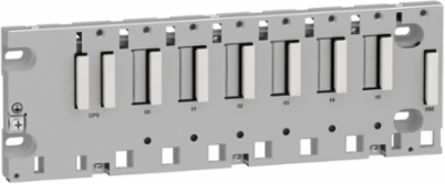

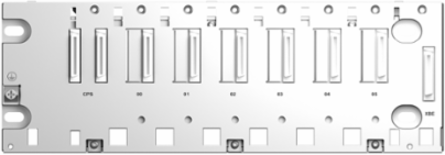

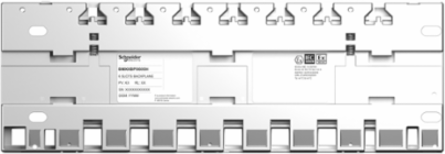

Schneider Electric BMXXBP0600H Modicon X80 Ethernet Backplane 6 Slots IP20 Ruggedized
- MPN: BMXXBP0600H
- PPN: SCH-BMXXBP0600H
CAD
$408.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 6 bus X slots. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a power of 1.5W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.79kg. It is suitable for severe environments, medium to large process applications. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth19 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Environmental Characteristic
- gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, hazardous location class I division 2
- Certificate Agency
- CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.314334053
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 8.2034242424
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2203018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2007
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Electrical Connection
- 1 connector (XBE) expansion module
- Power Consumption In W
- 1.68 W
- Product Or Component Type
- ruggedized backplane
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2203018EN
- Pep Verification Date
- 2022-04-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 118.26
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Width Nominal
- 307.6 mm
- Package Weight(Lbs)
- 844.0 g
- Warranty (In Months)
- 18
- Water Pollution (M3) Operational Energy Use [B6]
- 3610
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Fixing Modeby 4 M4/M5/M6 screws panel, by 4 M4/M5/M6 screws mounting plate, by clips 35 mm symmetrical DIN rail
Carbon Footprint Of The Distribution Phase [A4]0.1110627273, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0082042235, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]72 kg CO2 eq., 72.3739130435
Local Publishable Date2026-06-14
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Number Of Slots6 bus X
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor severe environments
Range Of ProductModicon X80
Software VersionEIME v5.9.3
Total Lifecycle Carbon Footprint81 kg CO2 eq.
Database Version2020-12
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y15
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Height Nominal103.7 mm
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1008.5
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- BMXP34 processor, BMXCPS power supply, I/O module, specific application module
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2203018EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2203018EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Take BackNo
China Rohs RegulationX
Carbon Footprint81.0109382897
Environmental DisclosureENVPEP2203018EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity10-95 % without condensation
