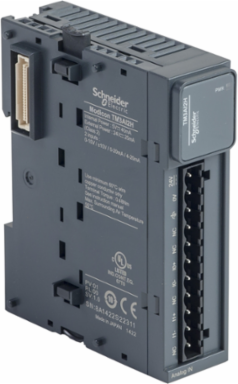

Schneider Electric TM3AI2H Analog Input Module, 2 Inputs 16-bit, 24V DC, IP20
- MPN: TM3AI2H
- PPN: SCH-TM3AI2H
CAD
$322.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Analog Input Module, 2 Inputs 16-bit, 24V DC, IP20
Features
- Outfitted with up to 16 bits of resolution ($15 \text{ bits} + \text{sign}$), the TM3AI2H records extremely minute changes in voltage and current signals. This medical-grade data precision prevents measurement drift and stabilizes control over variable speed drives, flow meters, and pressure transducers, making it perfect for sensitive packaging or chemical processing automation.
- This analog input module features 2 software-configurable channels that natively support 0-10V, -10-+10V, 0-20mA, and 4-20mA signal styles. This versatile pairing allows controls engineers to interface with diverse field instrumentation simultaneously, saving valuable DIN rail space and lowering total hardware acquisition costs.
- With a blazing-fast 1 millisecond sampling duration, this module converts incoming physical signals into system data with virtually zero lag. This instant reaction time provides your main processor with real-time feedback loop telemetry, allowing your automated machinery to execute immediate safety interventions or precise positioning adjustments.
- Engineered for unified plug-and-play installation, the module integrates directly via the standard bus connector with Modicon M221, M241, M251, and M262 logic controllers. This seamless ecosystem compatibility eliminates complex network programming and communications setup, reducing commissioning timelines for system integrators.
- Equipped with a removable 5.08 mm pitch screw terminal block, the unit allows for rapid pre-wiring or quick swap-outs during critical field maintenance. Electricians can easily pull out the entire terminal bundle without detaching individual sensor wires, minimizing costly facility downtime and preventing terminal miswiring errors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Japan, United States
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cross Talk
- <= 1 LSB, <= 1 LSB
- Certificate Agency
- CE, UKCA, RCM, EAC, cULus, cULus HazLoc
- Carbon Footprint Of The Distribution Phase [A4]
- 0.04988872964154122, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0058833718780732834
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 23 kg CO2 eq., 22.767616570511613
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1402009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Bearing Track Assembly Possible
- false
- Electrical Connection
- 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and supply
- Front Installation Possible
- false
- Insulation
- between input and supply 1500 V ACbetween input and internal logic 500 V AC
- Lsb Value
- 0.153 mV, 0...10 V0.305 mV, - 10...10 V0.305 µA, 0...20 mA0.244 µA, 4...20 mA
- Network Type
- DC
- Product Availability
- Stock - Normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM3
- Returnability
- Yes
- Shock Resistance
- 15 gn 11 ms
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 38 kg CO2 eq.
- Typical Current Consumption
- 30 mA 5 V DC no load40 mA 5 V DC full load25 mA 24 V DC
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- System Accessory
- false
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Taiwan, TW
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential In %
- 3
- Width Nominal
- 23.6 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Non-linearity+/- 0.01 %FS, +/- 0.01 %FS
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5341846124131088, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 14.434905846397077
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Conversion Time1 ms + 1 ms per channel + 1 controller cycle time
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Immunity To Microbreaks10 ms
Local Signalling1 LED green PWR
MarkingCE
Permissible Continuous Overload13 V voltage40 mA current
Product Or Component Typeanalog input module
Radio Standard Gprsfalse
Radio Standard Umtsfalse
Repeat Accuracy+/-0.5 %FS+/-0.5 %FS
Sampling Duration1 ms
Software Versionv6.1
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Temperature Drift+/- 0.006 %FS/°C+/- 0.006 %FS/°C
Type Of Cabletwisted shielded pairs cable <30 m input
Vibration Resistance3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Pep CodeENVPEP1402009EN
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal90 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)220.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 37.792479130841414
- Circularity Profile
- ENVEOLI1402009EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1402009EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1402009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Input Attributes
- Analogue Input Resolution
- 16 bits, 15 bits + sign
- Input Impedance
- <= 50 Ohm, >= 1 MOhm<= 50 Ohm, >= 1 MOhm
Analogue Input Typecurrent 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V
Analogue Input Number2
