Documentation & Downloads

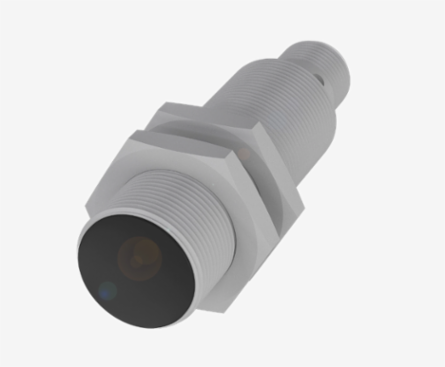

Balluff BES02KK BES M18ML-PSC50A-S04G-W01
- MPN: BES02KK
- PPN: BAL-BES02KK
CAD
$277.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
BES M18ML-PSC50A-S04G-W01
Documentation & Downloads
Specifications
Additional
- Rated Operating Voltage
- 24 V DC
- Rated Operating Current
- 200 mA
- Switching Frequency
- 2500 Hz
- Load Capacitance Maximum
- 1 µF
- Rated Operating Distance
- 5 mm
- Repeat Accuracy
- 5 %
- Tolerance
- B110 %
- Contamination Scale
- 3
- Ambient Temperature Range
- -25...70 B0C
- Dimension
- D8 18 x 65 mm
- Tightening Torque
- 12 Nm
- Housing Material
- Brass, PTFE coated
- Short-Circuit Protection
- Yes
- Protection Against Device Mix-Ups
- Yes
- MTTF (40 B0C)
- 320 a
- Approval/Conformity
- cULus, CE, UKCA, WEEE
Operating Voltage10...30 V DC
Rated Short Circuit Current100 A
Voltage Drop Static Maximum2.5 V
Assured Operating Distance3.9 mm
Real Switching Distance5 mm
Temperature Drift10 %
Switching OutputPNP normally open (NO)
Magnetic Field ImmunityAC/DC magnetic field immune
SizeM18x1
Mounting Length50 mm
ConnectionM12x1-Male, 4-pin, A-coded
Sensing Surface MaterialCeramic coated
Polarity Reversal ProtectionYes
IP RatingIP67
Basic StandardIEC 60947-5-2
