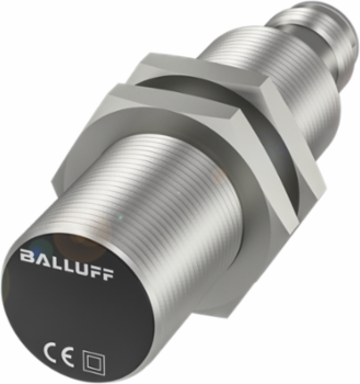

Balluff BES M18MI-PSC80B-S04G Inductive Sensor M18x1 Ø 18 x 66 mm PNP IP68
Balluff BES M18MI-PSC80B-S04G Inductive Sensor M18x1 Ø 18 x 66 mm PNP IP68
- MPN: BES M18MI-PSC80B-S04G
- PPN: BAL-BES008L
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$69.89/ EA
Description
Experience precision and reliability with the inductive standard sensors designed by Balluff, specifically the BES008L model. Engineered for flush mounting, this sensor features a robust brass housing with a nickel-free coating, ensuring durability even in challenging environments. With an impressive sensing range of 8 mm and a high switching frequency of 1300 Hz, it operates effectively within a voltage range of 10 to 30 VDC, making it suitable for various automation and control applications. The sensor is IP68 rated, providing excellent protection against dust and water, and is capable of functioning in extreme temperatures from -40 to 85 °C, ensuring consistent performance regardless of conditions.
Specifications
- Operating Voltage
- 10...30 VDC
- Switching Frequency
- 1300 Hz
- Rated Insulation Voltage
- 250 V AC
- Size
- M18x1
- Mounting
- for flush mounting
- Material
- Brass, Nickel-free coated
- IP Rating
- IP68
- Switching Output
- PNP Normally open (NO)
- Approval/Conformity
- CE; UKCA; cULus; WEEE
Range8 mm
Rated Operating Current200 mA
Load Capacitance Max0.5 µF
DimensionsØ 18 x 66 mm
ConnectionConnector, M12x1-Male, 3-pin
Material Sensing SurfacePBT
Ambient Temperature Range-40...85 0C
Tightening Torque25 Nm
Country of OriginHungary
