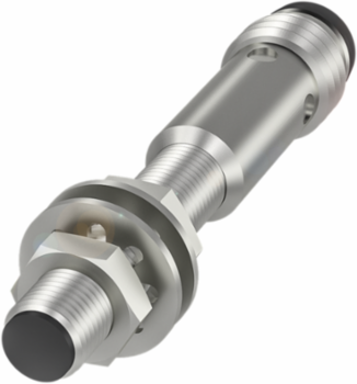

Inductive standard sensors with preferred types BES 516-3023-G-E5-C-S49
Balluff

Balluff BES 516-3023-G-E5-C-S49 Inductive standard sensors with preferred types BES 516-3023-G-E5-C-S49

  • MPN: BES 516-3023-G-E5-C-S49
  • PPN: BAL-BES00LC

CAD

$237.69

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
Ø 5 x 41 mm
Installation
for flush mounting
Switching output
NPN Normally closed (NC)
Housing material
Stainless steel
Connection
Connector, M8x1-Male, 3-pin
Ambient temperature
-25-70 °C
Approval/Conformity
cULus, CE, EAC, WEEE
StyleM5x0.5
Range1.5 mm
Switching frequency5000 Hz
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
IP ratingIP67
