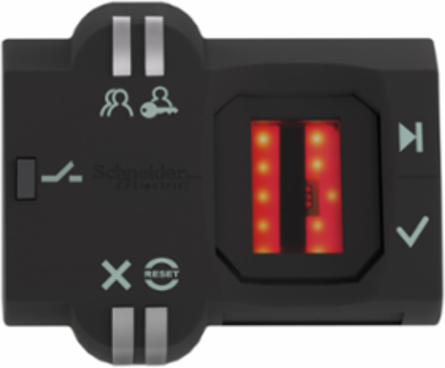

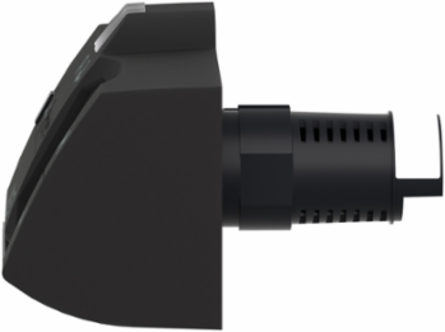

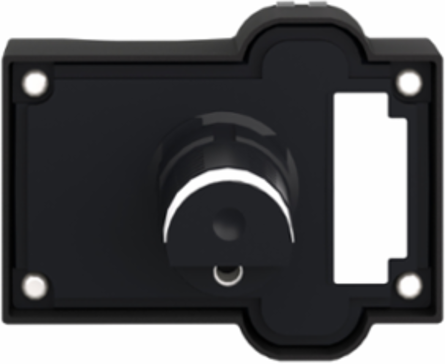

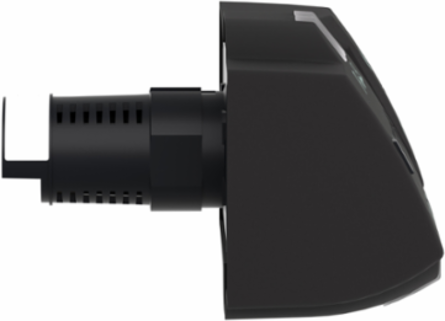

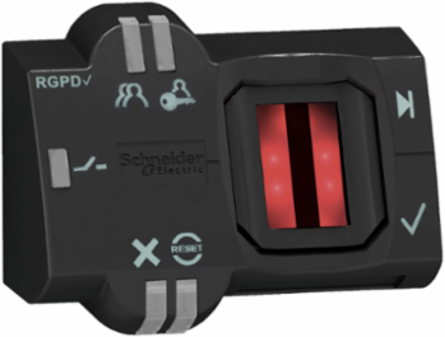

Schneider Electric XB5S6B2L2 Biometric Switch, 22mm, IP65, 24V DC, NEMA 12, 200 Users
- MPN: XB5S6B2L2
- PPN: SCH-XB5S6B2L2
CAD
$556.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Diameter
- 22 mm
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- fingerprint reader
- Operator Position Information
- 2 positions
- Output Type
- PNP
- Device Short Name
- XB5S
Product Or Component Typebiometric switch RGPD
Connections - Terminals1 pre-wired cable, 3 x 0.34 mm²
Bezel Materialplastic
Product Specific Applicationindustrial machines || materials handling
Type Of Operatorstay put
Memory Usage200 users with up to 2 fingerprints per user
Complementary
- Current Consumption
- <= 70 mA no-load
- Maximum Delay Response
- 1.5 s
- Cable Insulation Material
- PvR
- Marking
- CE
- [Us] Rated Supply Voltage
- 24 V DC
- Supply Voltage Limits
- 20-30 V DC
- Operating Position
- horizontal position || flat surface installation || vertical surface installation
- Enclosure Material
- polyamide PA66
- [Ures] Residual Voltage
- 1 V closed state
Electrical Connectionfree wire ends 3 2 m
Short-Circuit Protection250 mA external fuse gG
Maximum Switching Current200 mA
Net Weight0.17 kg
Maximum Delay Recovery1.5 s
Local Signallingoutput state indicator 1 LED green) || administrator's registration mode 1 LED orange) || operator's registration mode 1 LED orange) || error 1 LED red) || reset 1 LED red)
Protection Typeshort-circuit || reverse polarity || overload protection
Function Of Modulebi-stable
Maximum Delay First Up3 s + 0.5 ms per user registered
Environment
- Product Certifications
- UL || CSA
- Range Of Product
- Harmony XB5S
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ambient Air Temperature For Storage
- -25-70 °C
Ambient Air Temperature For Operation-5-50 °C
StandardsIEC 61000-6-4 || IEC 61000-6-2
Vibration Resistance+/- 3 mm 5-9 Hz)IEC 60068-2-6 || 1 gn 9-500 Hz)IEC 60068-2-6
Nema Degree Of ProtectionNEMA 12
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions
