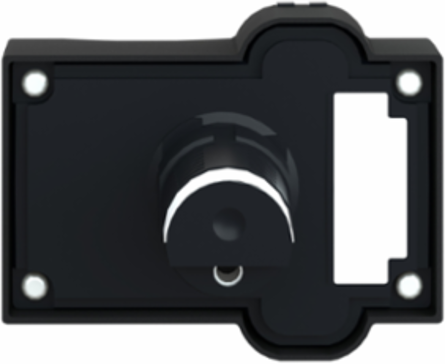

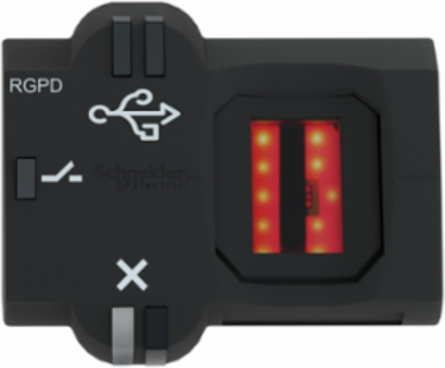

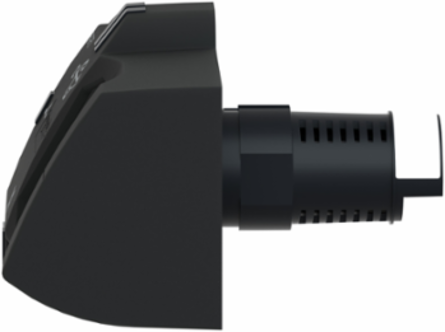

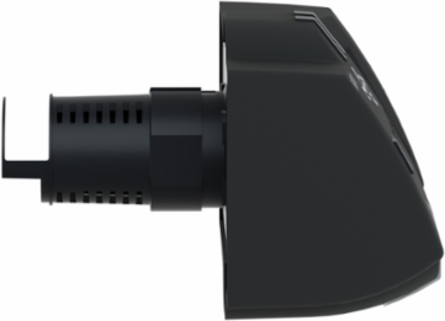

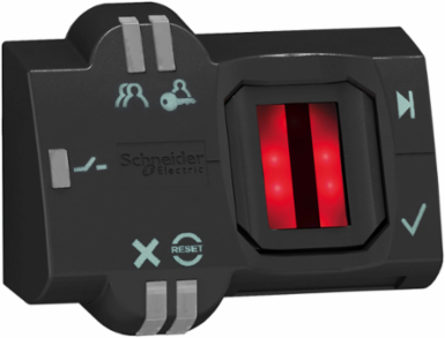

Schneider Electric XB5S1B2L2 Electric XB5S1B2 Harmony XB5S Biometric Switch 22mm, IP65, 24V DC
- MPN: XB5S1B2L2
- PPN: SCH-XB5S1B2L2
CAD
$556.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB5, bistable biometric switch has a pre-wired cable connection and is supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Diameter
- 22 mm
- Ip Degree Of Protection
- IP20 EN/IEC 60529 rear face) || IP65 EN/IEC 60529 front face)
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- fingerprint reader
- Operator Position Information
- 2 positions
- Output Type
- PNP
- Device Short Name
- XB5S
Product Or Component Typebiometric switch
Connections - Terminals1 pre-wired cable, 3 x 0.34 mm²
Bezel Materialdark grey plastic
Product Specific Applicationindustrial machines || materials handling
Type Of Operatorstay put
Memory Usage200 users with up to 2 fingerprints per user
Complementary
- Current Consumption
- <= 70 mA no-load
- Maximum Delay Response
- 1.5 s
- Cable Insulation Material
- PvR
- Marking
- CE
- [Us] Rated Supply Voltage
- 24 V DC
- Supply Voltage Limits
- 20-30 V DC
- Operating Position
- horizontal position || flat surface installation || vertical surface installation
- Enclosure Material
- polyamide PA66
- [Ures] Residual Voltage
- 1 V closed state
Electrical Connectionfree wire ends 3 2 m
Short-Circuit Protection250 mA external fuse gG
Maximum Switching Current200 mA
Net Weight0.17 kg
Maximum Delay Recovery1.5 s
Local Signallingoutput state indicator 1 LED green) || administrator's registration mode 1 LED orange) || operator's registration mode 1 LED orange) || error 1 LED red) || reset 1 LED red)
Protection Typeshort-circuit || reverse polarity || overload protection
Function Of Modulebi-stable
Maximum Delay First Up3 s + 0.5 ms per user registered
Environment
- Product Certifications
- UL || CSA
- Range Of Product
- Harmony XB5S
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ambient Air Temperature For Storage
- -25-70 °C
Ambient Air Temperature For Operation-5-50 °C
StandardsIEC 61000-6-4 || IEC 61000-6-2
Vibration Resistance+/- 3 mm 5-9 Hz)IEC 60068-2-6 || 1 gn 9-500 Hz)IEC 60068-2-6
Nema Degree Of ProtectionNEMA 12
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP081202-EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
