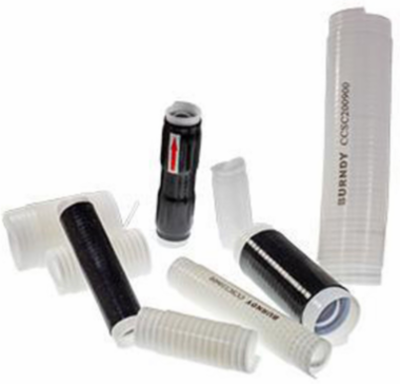

Burndy CCSC200900 Clear Cold Shrink Silicone Rubber Tube, 9.02 Inch Length, 2000 Volt Insulation
- MPN: CCSC200900
- UPC: 621945524255
- PPN: BUR-50090779
- UNSPSC: 39121728
CAD
$63.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clear Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.
Features
- Length of tube is consistent before and after application
- Easy, safe installation
- Suitable for wide range of cable sizes
- UV resistance, thermal stability
- No special tools or training required
- Forms a moisture resistant seal
- Indoor and outdoor applications
- Rip and Grip Installation does not require heat gun or any installation tools
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
- cUL insulating cover for wire connectors tested in accordance to UL 486A/B
- Passes UL 746C Glow Wire Test
- Ripcord is recyclable
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 2000 V
- Diameter
- 0.75 in
- Material
- Silicone Rubber
- Dimension - Diameter Max before Shrink
- 2.09 in
- Compliance
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test, UL 746C Glow Wire Test, cUL Insulating Cover Tested to UL 486A/B
Length9.02 in
Width0.12 in
ColorClear
Operating Temperature Range-40 C to +105 C
Country of OriginCN
