Burndy CCSC256900 Clear Cold Shrink Silicone Rubber Tube, 9 Inch, 2000 Volt Insulation Sealing
- MPN: CCSC256900
- UPC: 621945658356
- PPN: BUR-50124998
- UNSPSC: 39121728
CAD
$72.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

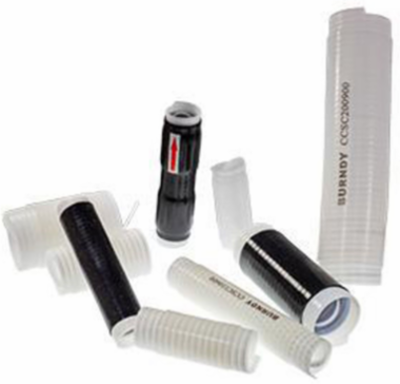

Clear Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.
Features
- Length of tube is consistent before and after application
- Easy, safe installation
- Suitable for wide range of cable sizes
- UV resistance, thermal stability
- No special tools or training required
- Forms a moisture resistant seal
- Indoor and outdoor applications
- Rip and Grip Installation does not require heat gun or any installation tools
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
- cUL insulating cover for wire connectors tested in accordance to UL 486A/B
- Passes UL 746C Glow Wire Test
- Ripcord is recyclable
Specifications
Additional
| Voltage Rating | 2000 V |
|---|---|
| Material | Silicone Rubber |
| Jacket OD Range | 1.22"-2.01" |
| Application | Cold Shrink, Insulation and moisture resistant sealing for in-line cable connectors |
| Color | Clear |
| Length | 9 in |
|---|---|
| Operating Temperature Range | -40 C to +105 C |
| Compliance | cUL Listed UL 486A/B, UL 746C Glow Wire, TELCORDIA GR-347-CORE |
| UV Resistance | Yes |
| Country of Origin | CN |
