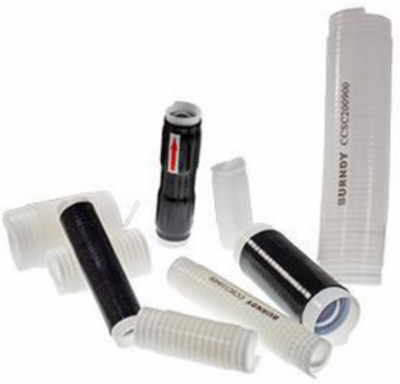

Burndy CCSC146600 Clear Cold Shrink Silicone Rubber Tube - 5.91 Inch Length, 0.63 Inch Diameter, 2000 Volt Rating
- MPN: CCSC146600
- UPC: 621945524224
- PPN: BUR-50090776
- UNSPSC: 39121728
CAD
$32.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clear Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.
Features
- Length of tube is consistent before and after application
- Easy, safe installation
- Suitable for wide range of cable sizes
- UV resistance, thermal stability
- No special tools or training required
- Forms a moisture resistant seal
- Indoor and outdoor applications
- Rip and Grip Installation does not require heat gun or any installation tools
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
- cUL insulating cover for wire connectors tested in accordance to UL 486A/B
- Passes UL 746C Glow Wire Test
- Ripcord is recyclable
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 2000 V
- Diameter
- 0.63 in
- Material
- Silicone Rubber
- Compliance
- Passes TELCORDIA GR-347, UL 746C Glow Wire, cUL UL 486A/B Insulating Cover
- Country of Origin
- CN
Length5.91 in
Maximum Diameter Before Shrink1.46 in
Operating Temperature Range-40 C to +105 C
ColorClear
